Genome-wide analysis of mutations in mutant lineages selected following fast-neutron irradiation mutagenesis of Arabidopsis thaliana

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 1.
Figure 1.

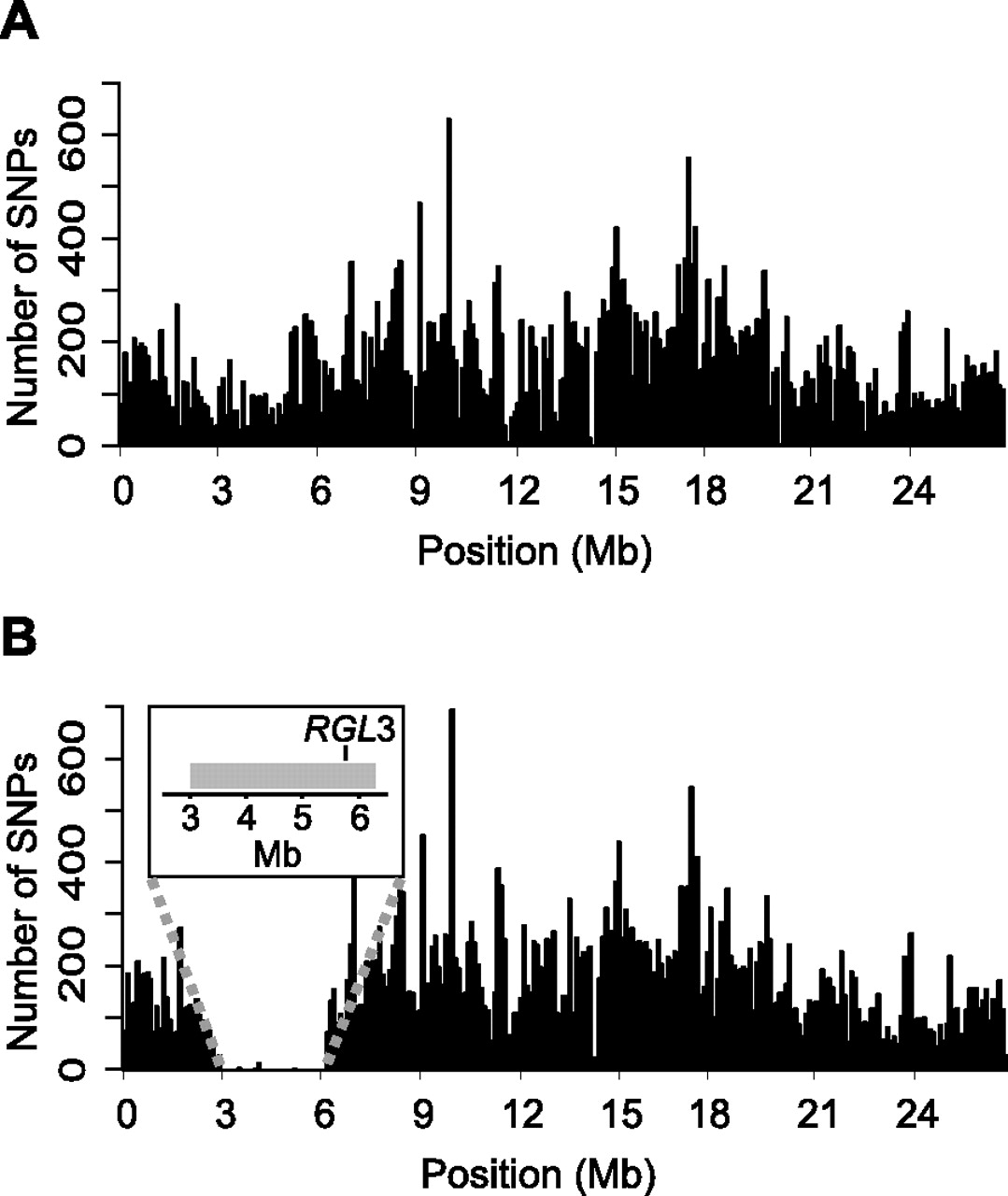

Density of single nucleotide polymorphisms (SNPs) detected following alignment of (A) A. thaliana Landsberg erecta (Gan et al. 2011) and (B) progenitor reads to the Col-0 (TAIR 9) reference genome sequence. Histograms of SNPs along the length of chromosome 5 are shown. The Col-0 segment of progenitor chromosome 5 (containing the rgl3-4 T-DNA insertion) is clearly visible in (B), between 3 Mb and 6.25 Mb, where the number of variants (versus TAIR 9) falls close to baseline. The site of the RGL3 locus is shown in the Col-0 DNA segment (in gray; see inset).

This Article

  1. Published in Advance April 12, 2012, doi: 10.1101/gr.131474.111 Genome Res. 22: 1306-1315
