Identification of copy number variants in horses

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

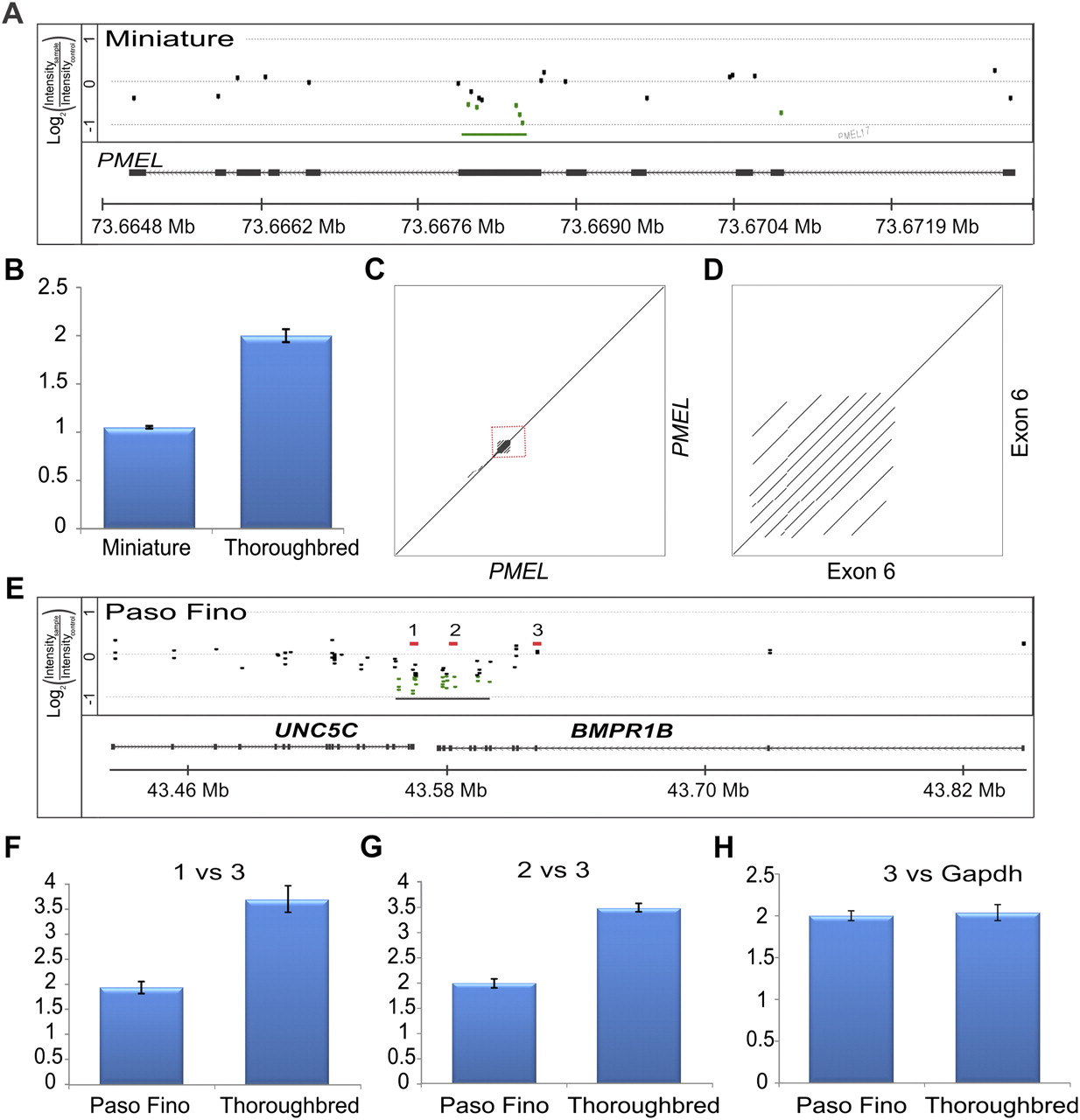

Figure 5.
Figure 5.

Identification and confirmation of CNVs in PMEL and BMPR1B genes. (A) Log2 ratio plot of PMEL gene showing a loss in a Miniature relative to a Thoroughbred horse. (B) qPCR confirmation of loss in a Miniature. (C) Percent identity plot of PMEL gene sequence with exon 6 highlighted by red box. (D) Percent identity plot of PMEL exon 6 sequence. (E) Log2 ratio plot of a BMPR1B gene showing a loss in a Paso Fino relative to a Thoroughbred horse. (F) qPCR confirmation of exon in UNC5C. (G) qPCR confirmation of exon in BMPR1B. (H) qPCR confirmation of normal exon in BMPR1B.

This Article

  1. Published in Advance March 1, 2012, doi: 10.1101/gr.128991.111 Genome Res. 22: 899-907
