Microevolution of extensively drug-resistant tuberculosis in Russia

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 3.
Figure 3.

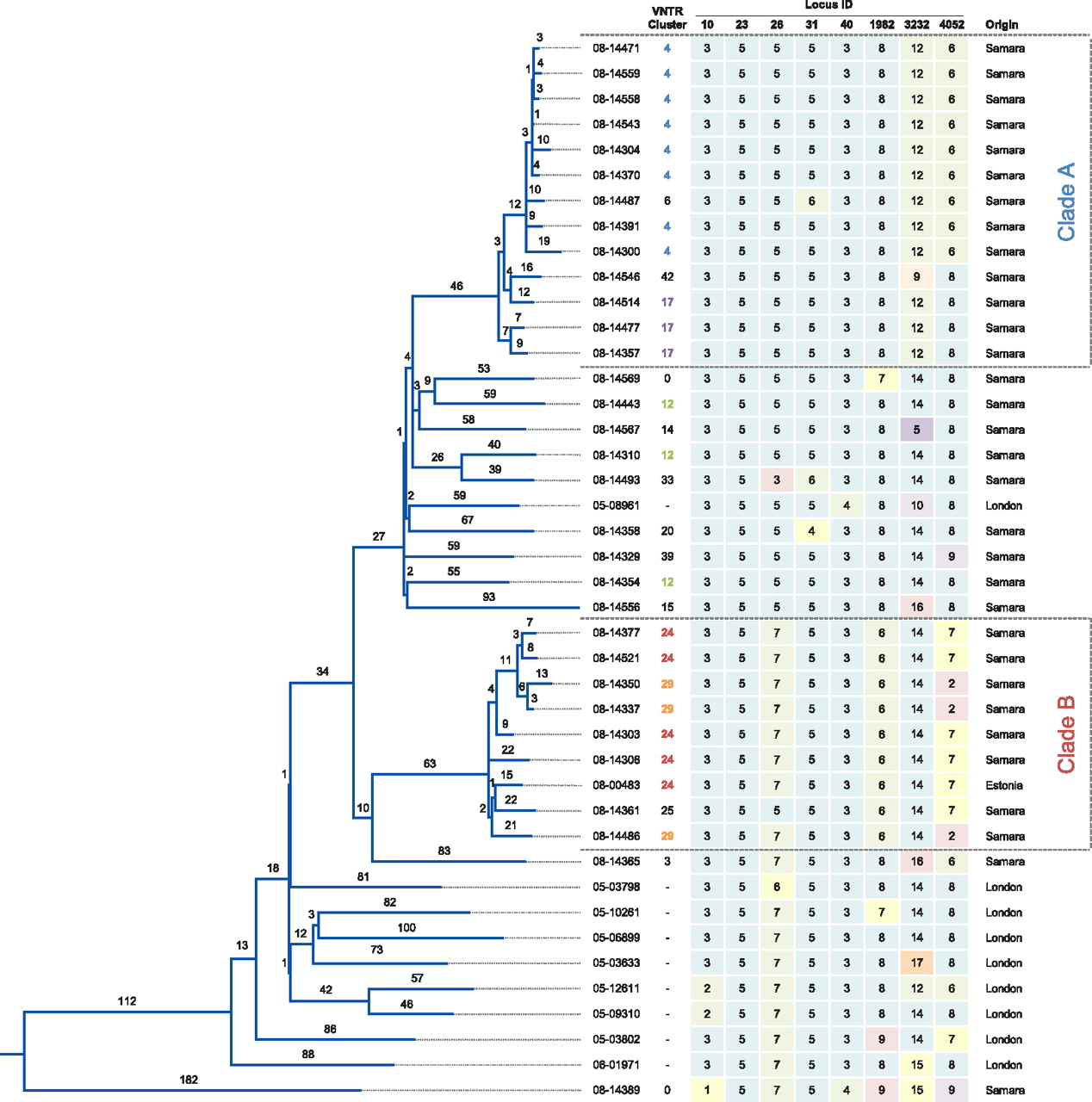

Correlation of VNTR types with SNP-derived phylogeny of the Beijing family. Branch labels show number of SNPs. VNTR loci are colored according to the prevalence of the number of repeats at that locus. Cluster designations are given for isolates from Samara; isolates with cluster number 0 were unique in the collection.
