After the bottleneck: Genome-wide diversification of the Mycobacterium tuberculosis complex by mutation, recombination, and natural selection

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 7.
Figure 7.

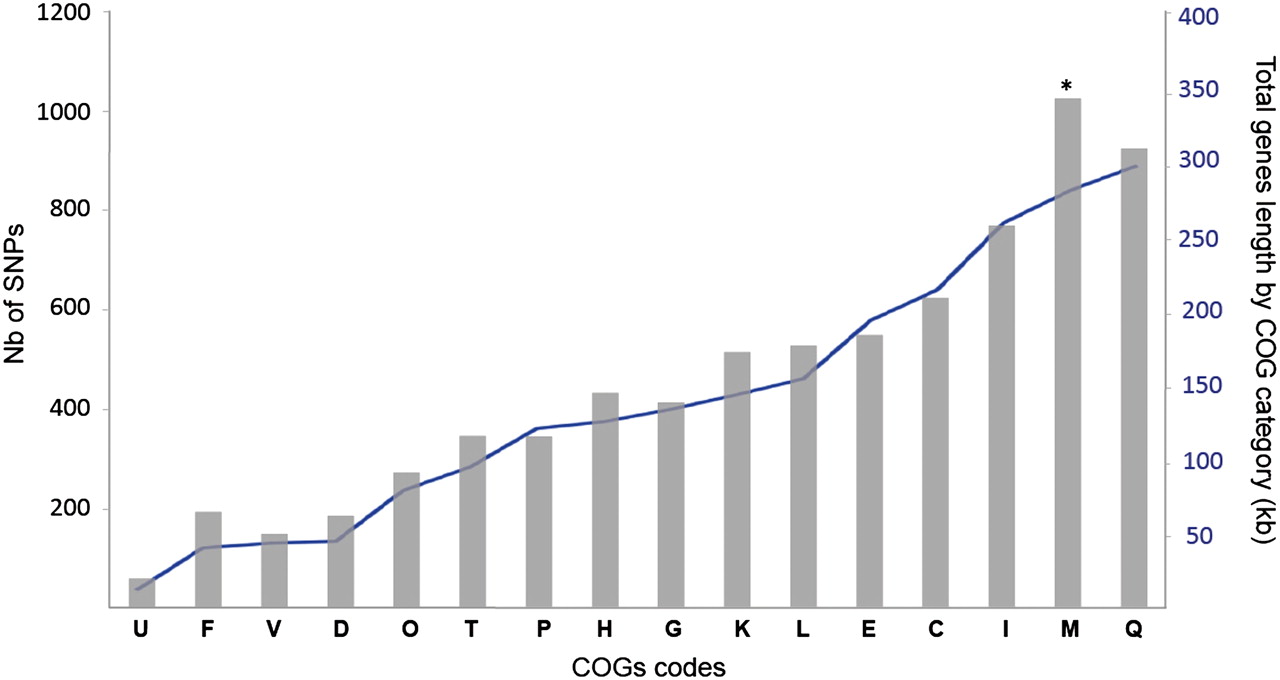

Distribution of SNPs according to the Clusters of Orthologous Groups (COG) classification. (U) Intracellular trafficking and secretion; (F) nucleotide transport and metabolism; (V) defense mechanisms; (D) cell cycle control, mitosis, and meiosis; (O) post-translational modification, protein turnover, chaperones; (T) signal transduction mechanisms; (P) inorganic ion transport and metabolism; (H) coenzyme transport and metabolism; (G) carbohydrate transport and metabolism; (K) transcription; (L) replication, recombination, and repair; (E) amino acid transport and metabolism; (C) energy production and conversion; (I) lipid transport and metabolism; (M) cell wall/membrane/envelope biogenesis; (Q) secondary metabolites biosynthesis, transport, and catabolism. (*) Class with significant over-representation of SNPs (p = 0.0015, Binomial test and sequential Bonferroni correction).
