GAGE: A critical evaluation of genome assemblies and assembly algorithms

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 5.
Figure 5.

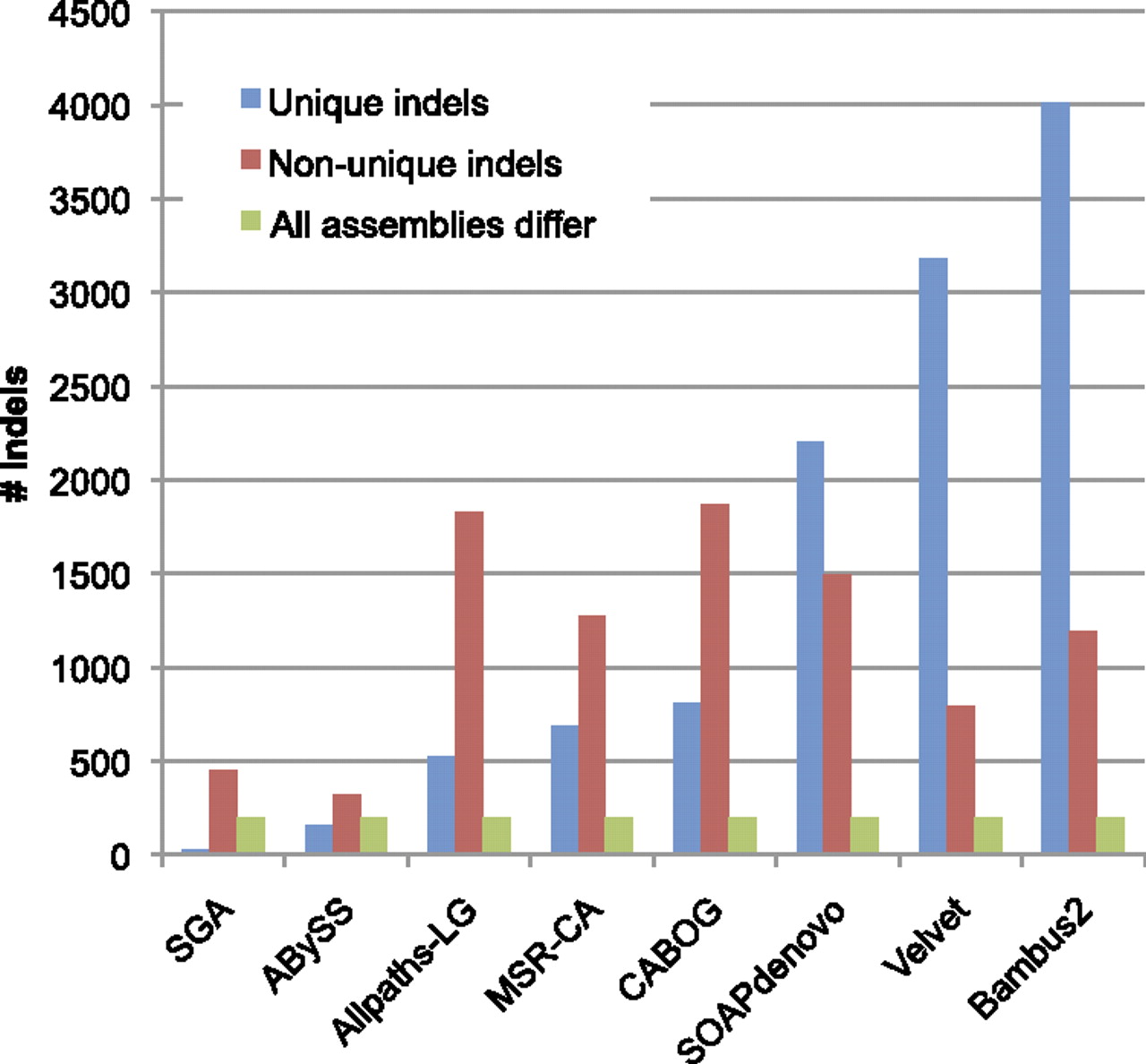

Comparison of insertion and deletion errors among all eight assemblers for human chromosome 14. (Blue) The indel errors >5 bp in length that are unique to each assembler. (Red bars) Indel errors made by at least one other assembler. (Green bars) Indels shared by all assemblers, which might represent true differences between the target genome and the reference.

This Article

  1. Published in Advance December 6, 2011, doi: 10.1101/gr.131383.111 Genome Res. 22: 557-567
