Genome-scale analysis of aberrant DNA methylation in colorectal cancer

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

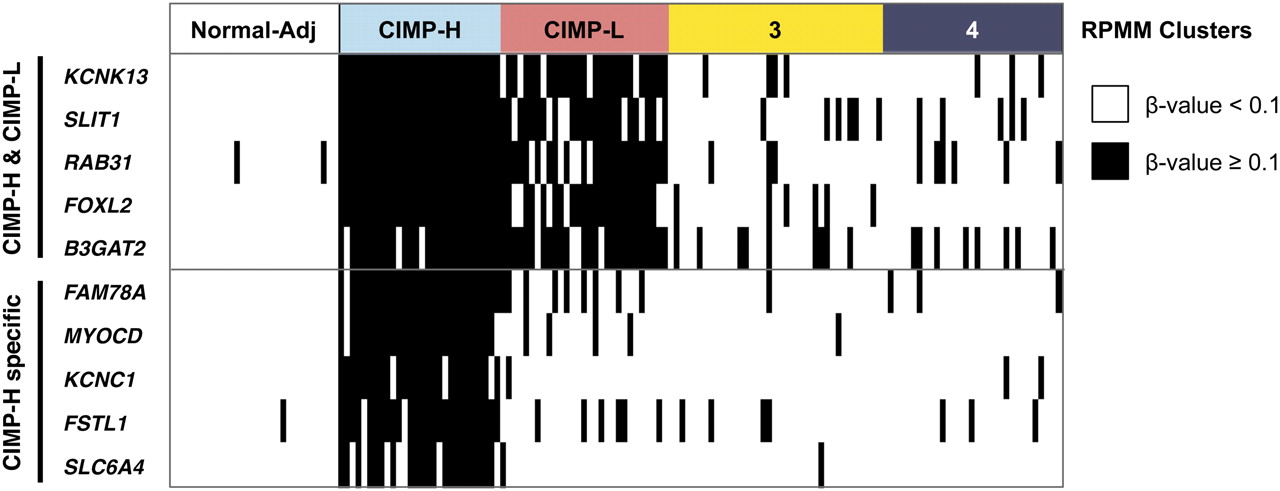

Figure 5.
Figure 5.

Diagnostic CIMP-defining gene marker panel based on the Infinium DNA methylation data. A dichotomous heatmap of the Infinium DNA methylation data is shown. (Black bars) DNA methylation β-value ≥0.1; (white bars) DNA methylation β-value <0.1. The panel of five markers shown on the top (CIMP-H & CIMP-L) is used to identify CIMP-H and CIMP-L tumors. The panel of five markers shown on the bottom (CIMP-H specific) is used to specifically identify CIMP-H tumors.

This Article

  1. Published in Advance June 9, 2011, doi: 10.1101/gr.117523.110 Genome Res. 22: 271-282
