Genic and nongenic contributions to natural variation of quantitative traits in maize

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

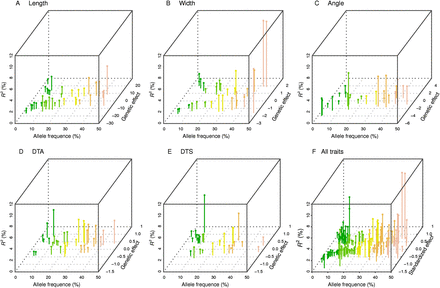

Figure 5.
Figure 5.

Contribution from an individual TAS to the phenotypic variation is determined by allele frequency and genetic effect size. (A) Leaf length in millimeters; (B) leaf width in millimeters; (C) leaf angle in degrees; (D) days to anthesis (DTA); (E) days to silking (DTS); and (F) combined results for all traits with standardized genetic effects.

This Article

  1. Published in Advance June 14, 2012, doi: 10.1101/gr.140277.112 Genome Res. 22: 2436-2444
