nFuse: Discovery of complex genomic rearrangements in cancer using high-throughput sequencing

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

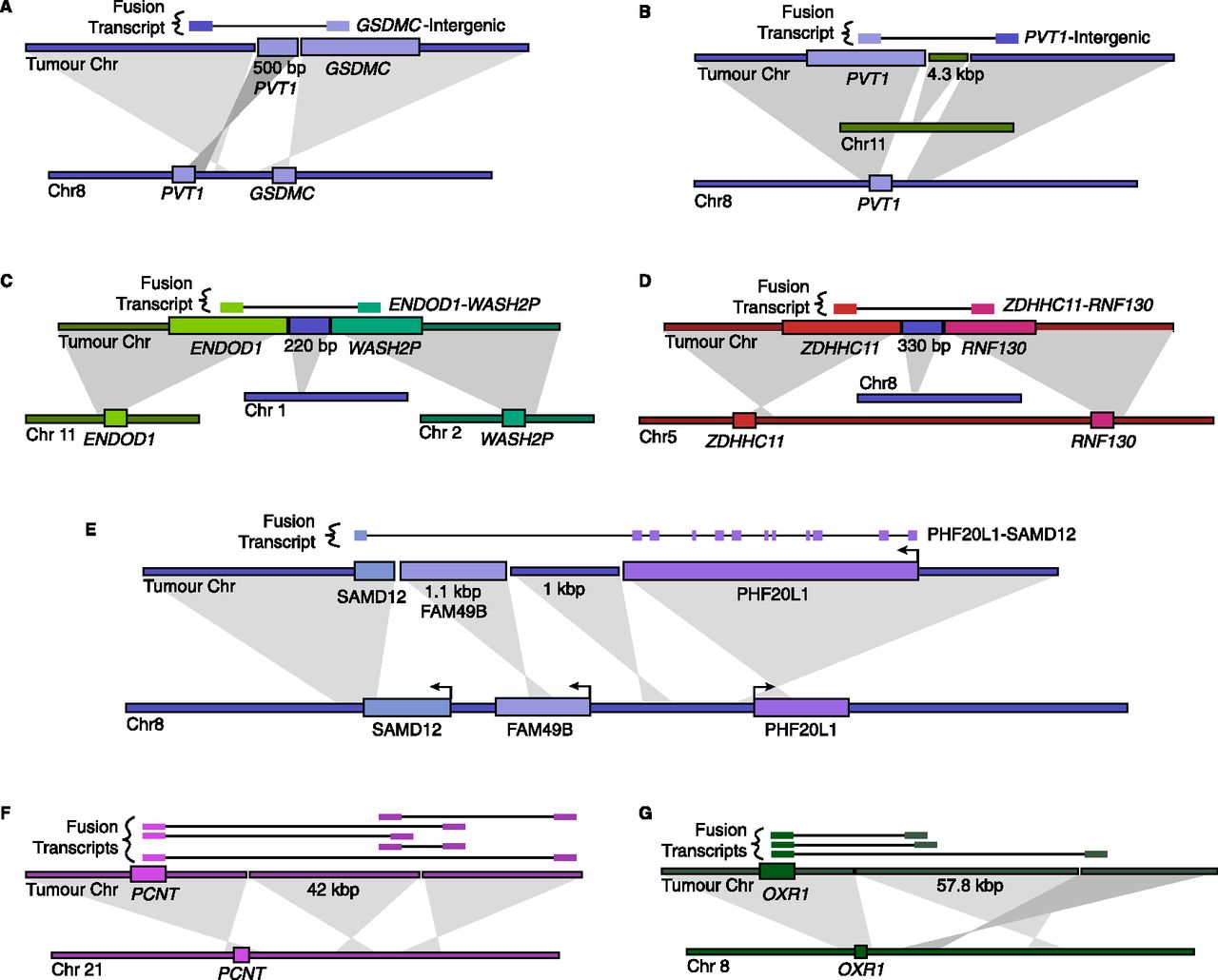

Figure 4.
Figure 4.

Complex breakpoints and polyfusions in HCC1954. (A–D) Complex breakpoints produce truncated GSDMC and PVT1 transcripts and ENDOD1-WASH2P and ZDHHC11-RNF130 fusion transcripts. Validated by LR-PCR. (E) A PHF20L1-FAM49B-SAMD12 polyfusion produces an in-frame PHF20L1-SAMD12 fusion transcript. Validated by LR-PCR. (F–G) Complex breakpoints corroborated by multiple fusion transcripts.

This Article

  1. Published in Advance June 28, 2012, doi: 10.1101/gr.136572.111 Genome Res. 22: 2250-2261
