Drosophila CTCF tandemly aligns with other insulator proteins at the borders of H3K27me3 domains

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

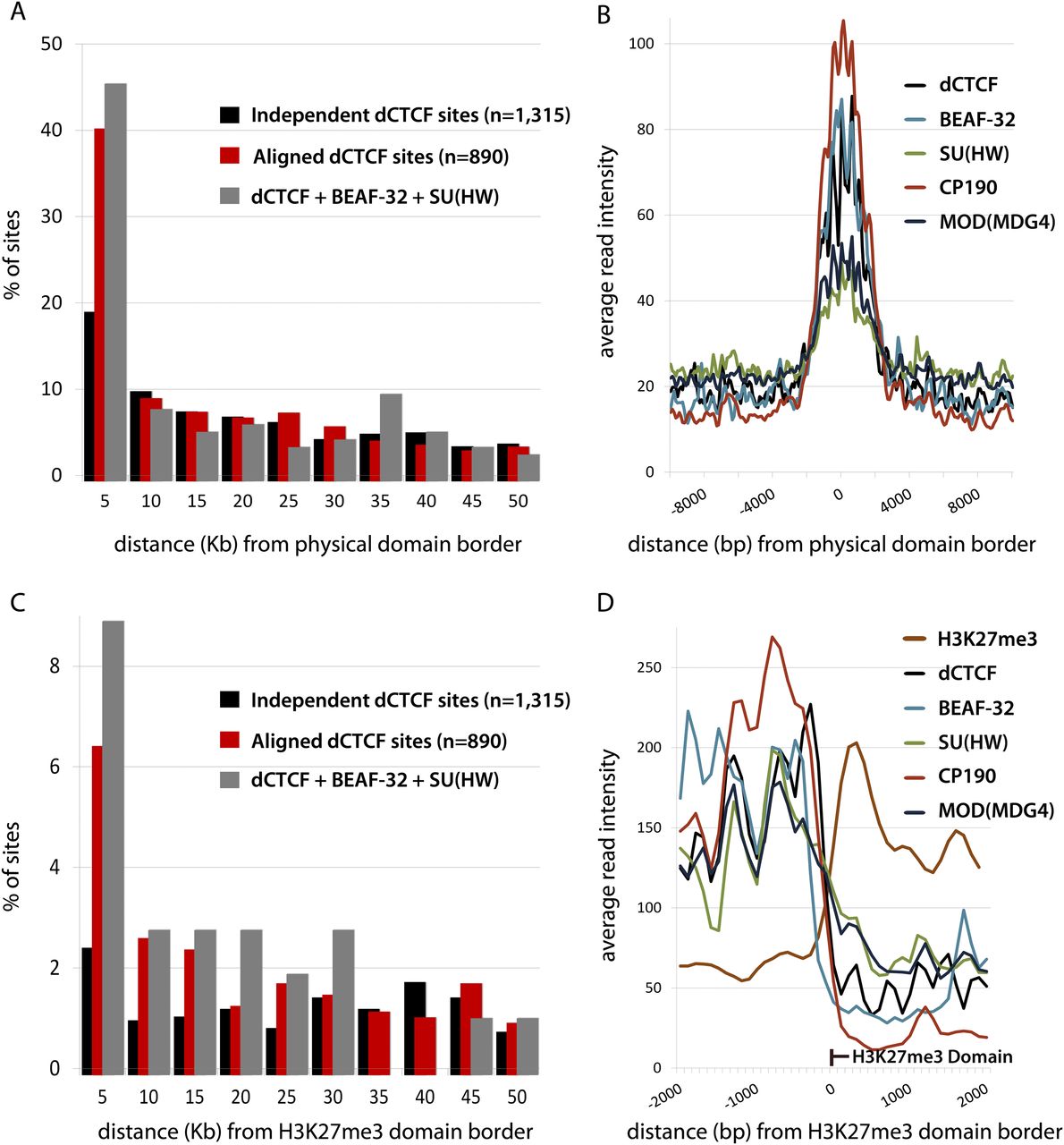

Figure 4.
Figure 4.

Aligned dCTCF sites are enriched at the borders of H3K27me3 and physical domains. (A) Percentage of independent and aligned dCTCF sites within 5 kb from recently mapped physical domain boundaries (Sexton et al. 2012). (B) Average read intensity for insulator proteins at physical domain boundaries, ±10 kb. Comparison of insulator profiles normalized by total read numbers. (C) Percentage of independent and aligned dCTCF sites within 5 kb from H3K27me3 domain borders. (D) Average read intensity for H3K27me3 and insulator proteins at H3K27me3 domain borders, ±2 kb. Comparison of insulator profiles normalized by total read numbers.

This Article

  1. Published in Advance June 21, 2012, doi: 10.1101/gr.136788.111 Genome Res. 22: 2176-2187
