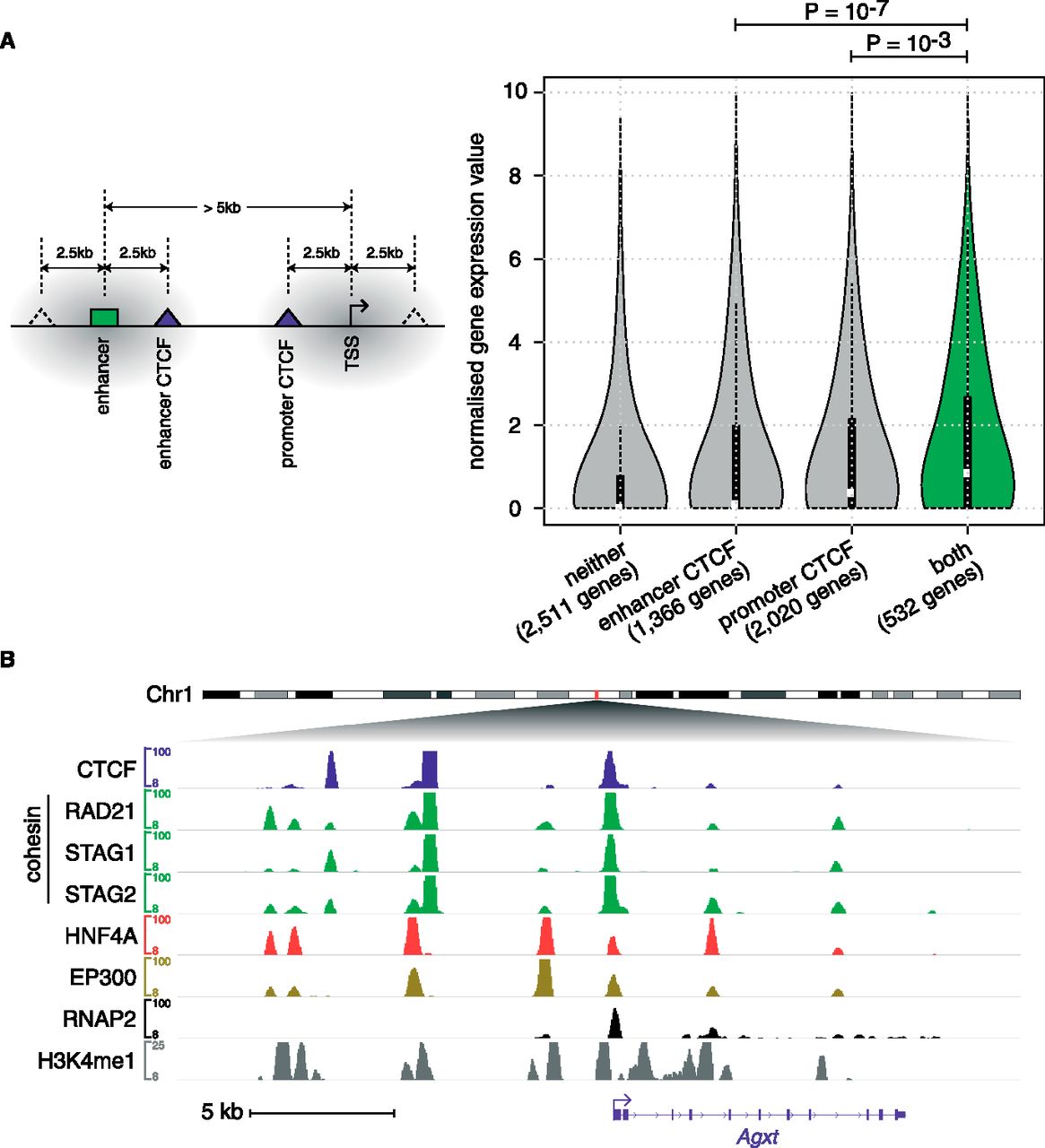

Figure 7.
Simultaneous CTCF binding within promoters and nearby enhancers is associated with elevated expression levels. (A) Violin plots showing gene expression distributions. Genes with CTCF binding events both within their promoters and nearby their associated enhancers show significantly elevated expression levels over those of the other three indicated classes (Mann-Whitney U-test P < 10−3). (B) Sample region near the liver-expressed Agxt gene, where CTCF binds within the core promoter, as well as near putative upstream cohesin-bound enhancers. Note that while CTCF is absent from the enhancers (CNC), it co-binds with HNF4A and EP300 within the Agxt promoter.
