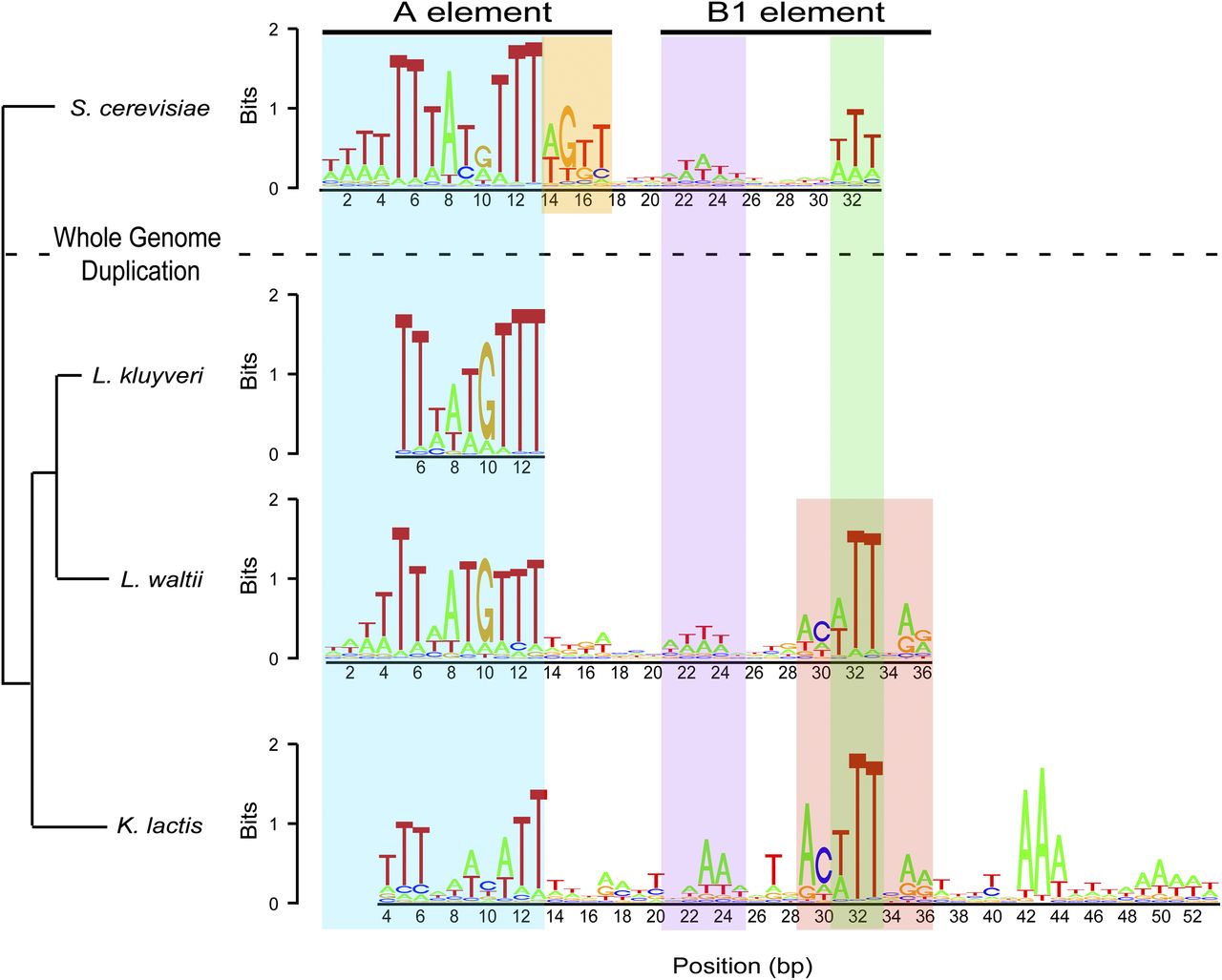

Figure 4.
ACS alignment for S. cerevisiae, L. kluyveri, L. waltii, and K. lactis. The consensus sequence for L. waltii ARSs as compared with those in S. cerevisiae, L. kluyveri, and K. lactis are plotted showing the T-rich strand. (Blue box) 13-bp A element; (orange box) extended 17-bp A element. The purple, green, and red boxes show the B1 element. The S. cerevisiae ACS was taken from Eaton et al. (2010), the L. kluyveri ACS was taken from Liachko et al. (2011), and the K. lactis ACS was taken from Liachko et al. (2010). The tree phylogeny is based on Jeffroy et al. (2006).
