Genes for embryo development are packaged in blocks of multivalent chromatin in zebrafish sperm

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

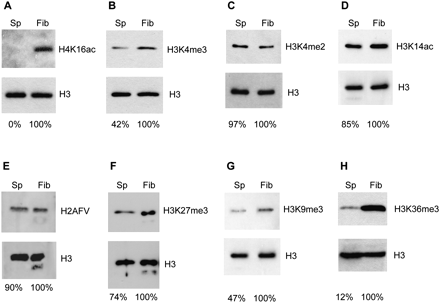

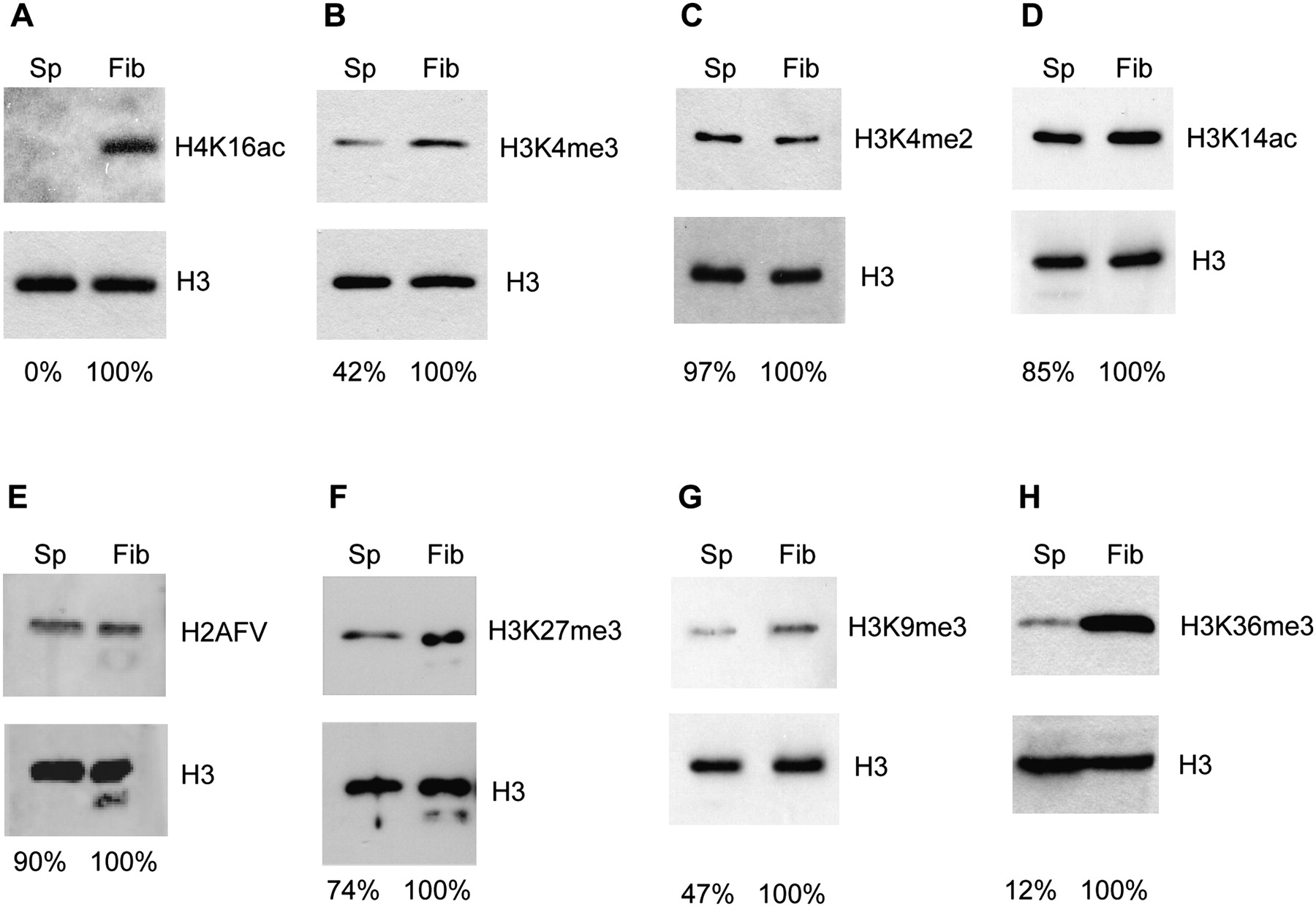

Figure 2.
Figure 2.

Bulk levels of histone modifications and histone variants in sperm. Immunoblotting was applied to quantify the level of modifications in sperm by comparing to ZF4 fibroblast cells and normalizing with H3 levels. (A) H4K16ac is not detected in sperm. (B–H) The levels of active and repressive marks and a histone variant (H2AFV/H2A.Z) in sperm compared with ZF4 fibroblast cells.

This Article

  1. Published in Advance March 7, 2011, doi: 10.1101/gr.113167.110 Genome Res. 21: 578-589
