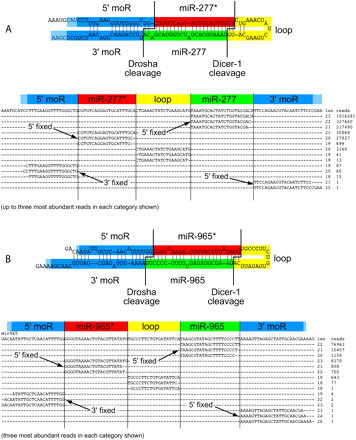

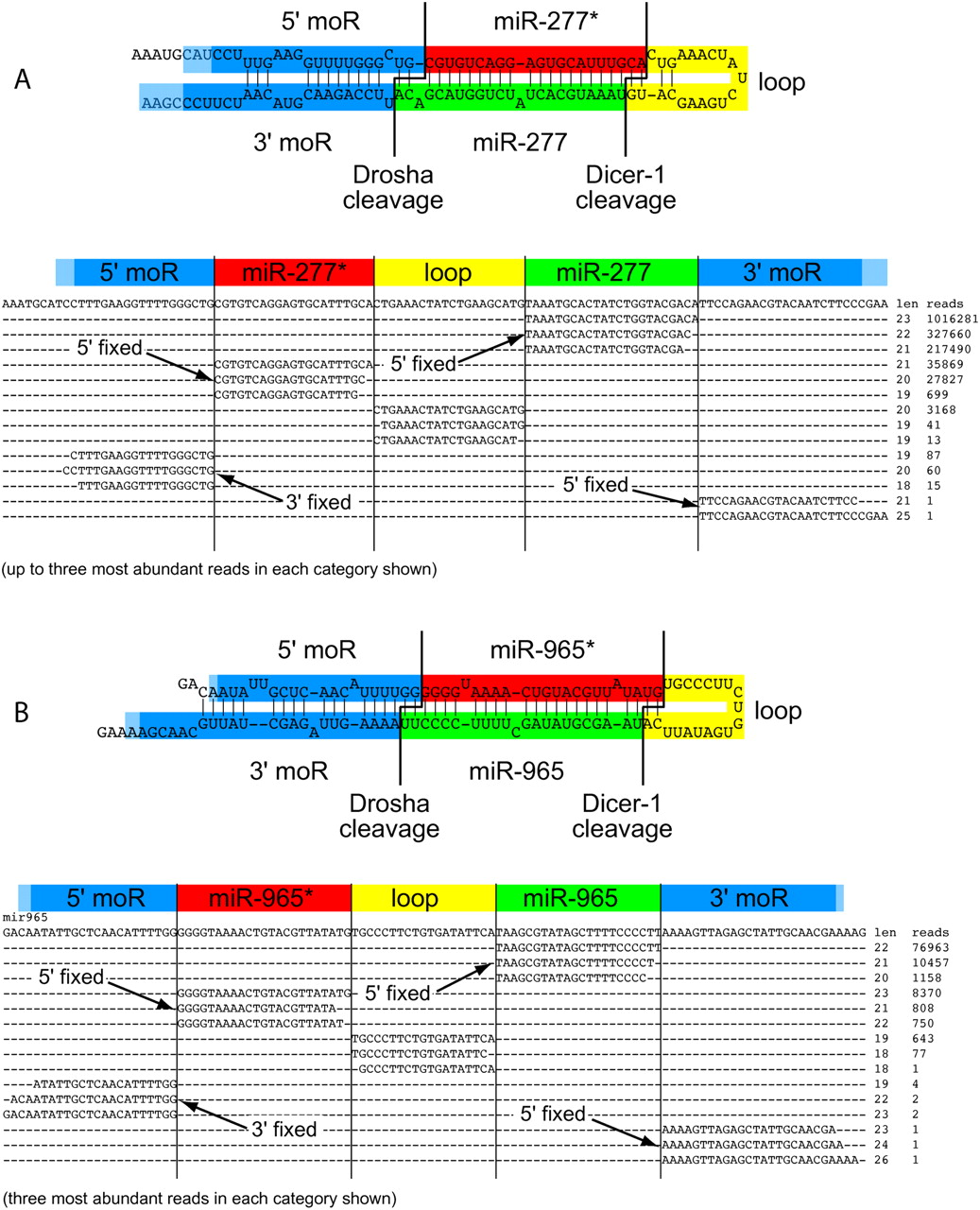

Figure 2.
Examples of miRNA loci exhibiting five phased species. (A) mir-277; (B) mir-965. The most abundant product is the miRNA (green) followed by its partner miRNA* species (red). The 5′ and 3′ ends of these RNAs dovetail with the abundant loop reads (yellow), as well as 5′ miRNA overlap (moR) and 3′ moR reads (blue). The convention of highlighting mature species green and star species red is continued in all subsequent figures.
