Chromosome and gene copy number variation allow major structural change between species and strains of Leishmania

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 3.
Figure 3.

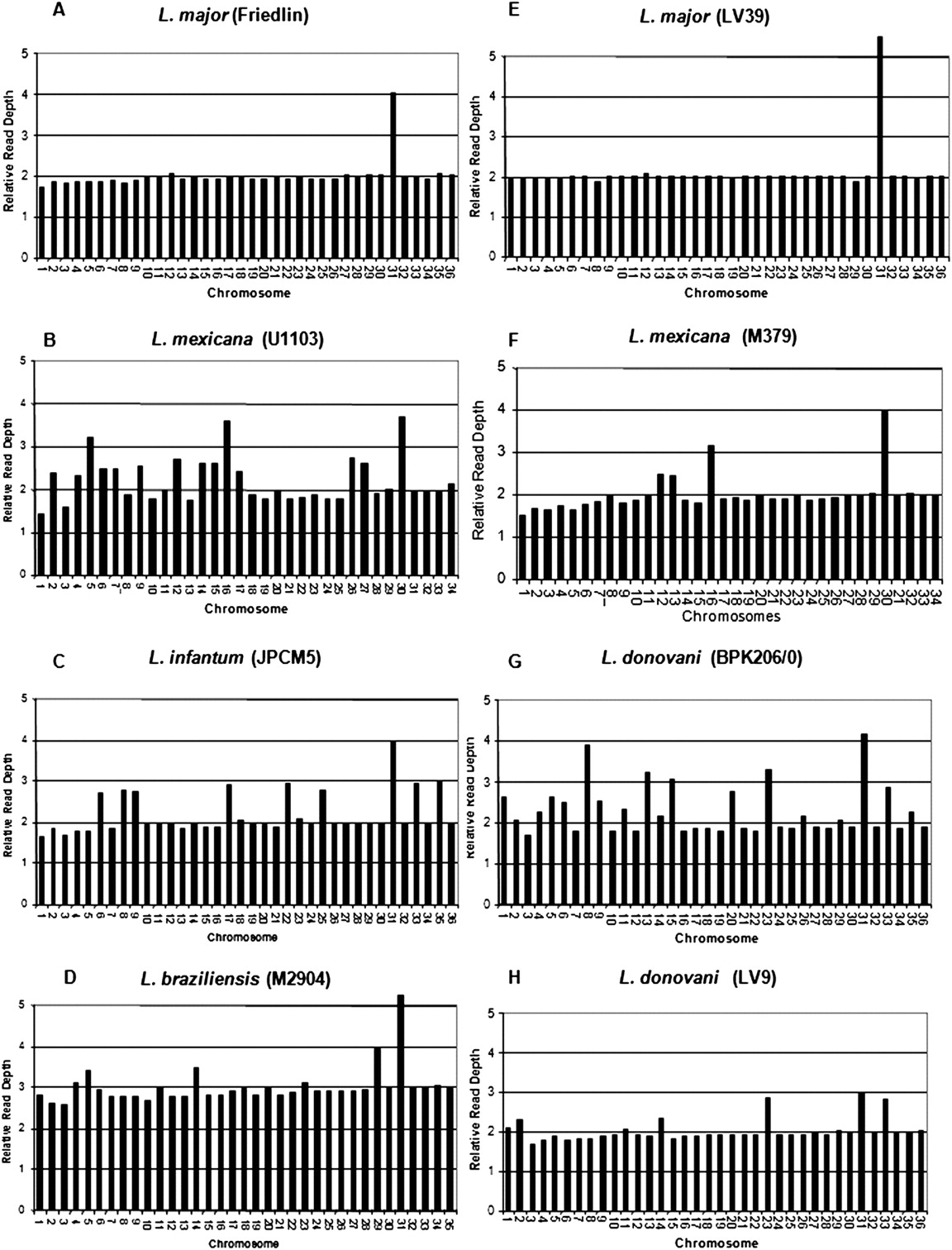

Chromosome copy number variation in Leishmania reference genomes. Read depth was scaled to give a value of 2 for disomic chromosomes. Median read depth over all chromosomes in the genome is indicated in brackets. (A) L. major Friedlin (52); (B) L. mexicana U1103 (106); (C) L. infantum JPCM5 (70); (D) L. braziliensis M2904 (80); (E) L. major LV39 (31); (F) L. mexicana M379 (87); (G) L. donovani BPK206/0 (86); (H) L. donovani LV9 (59).

This Article

  1. Published in Advance October 28, 2011, doi: 10.1101/gr.122945.111 Genome Res. 21: 2129-2142
