A matter of life or death: How microsatellites emerge in and vanish from the human genome

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 3.
Figure 3.

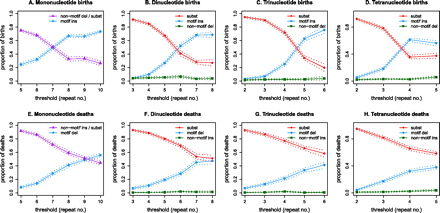

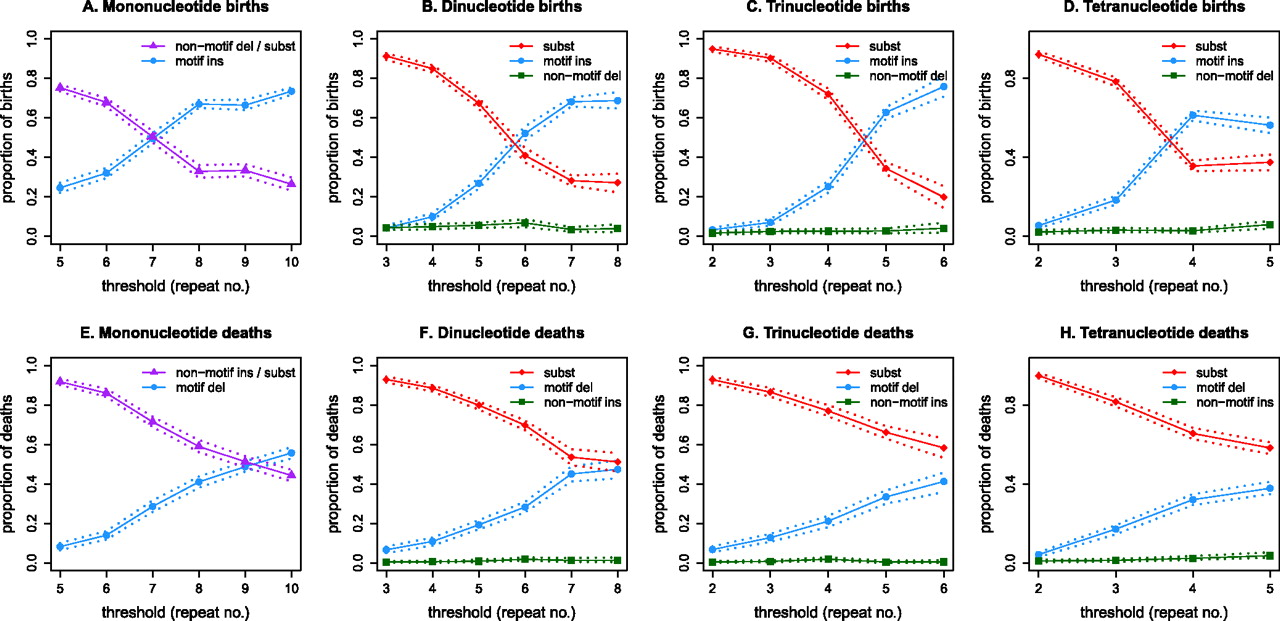

Proportion of various causal mutations as a function of the microsatellite threshold for (A) mono-, (B) di-, (C) tri-, and (D) tetranucleotide births; and (E) mono-, (F) di-, (G) tri-, and (H) tetranucleotide deaths. Dashed lines indicate 95% bootstrap confidence intervals that were computed for each threshold by re-sampling the genome-wide set of microsatellite loci with replacement.

This Article

  1. Published in Advance October 12, 2011, doi: 10.1101/gr.122937.111 Genome Res. 21: 2038-2048
