Efficient cross-species capture hybridization and next-generation sequencing of mitochondrial genomes from noninvasively sampled museum specimens

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

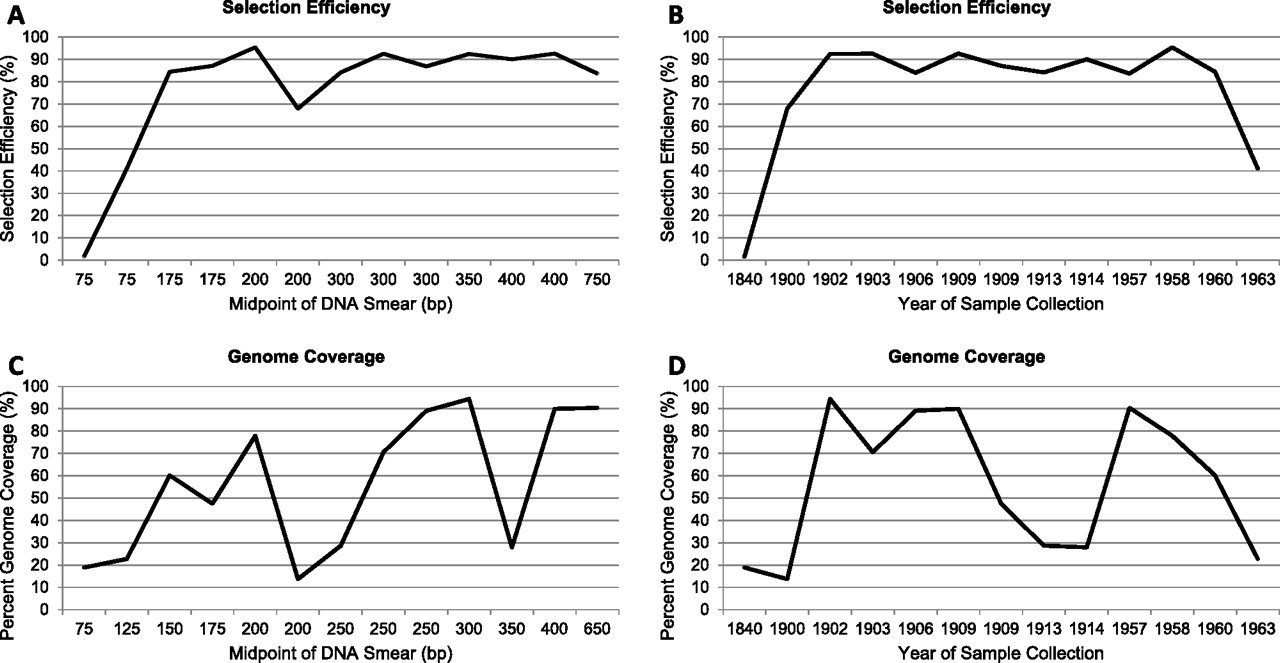

Figure 3.
Figure 3.

Plots of selection efficiency and mtDNA genome coverage relative to the original sample DNA quality (average size in base pairs of DNA fragments on 1% agarose gel) (see Fig. 1) and age of sample. (A) The effect of DNA quality on selection efficiency. (B) The effect of specimen age on selection efficiency. (C) The effect of DNA quality on mitochondrial genome coverage. (D) The effect of specimen age on mitochondrial genome coverage.

This Article

  1. Published in Advance August 31, 2011, doi: 10.1101/gr.120196.111 Genome Res. 21: 1695-1704
