Natural selection shapes nucleotide polymorphism across the genome of the nematode Caenorhabditis briggsae

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

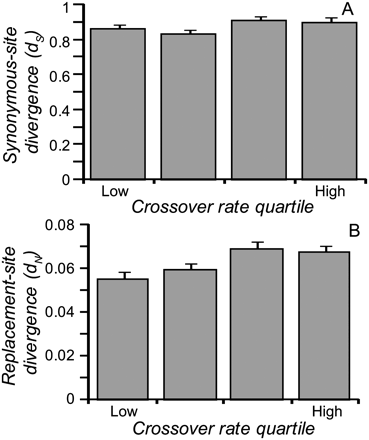

Figure 3.
Figure 3.

Lineage-specific synonymous-site (A) and replacement-site divergence (B) for quartiles of recombination rate in C. briggsae, in genome comparisons with C. remanei and C. elegans as outgroups. ANOVA models that include recombination rate, codon bias, background nucleotide composition, chromosome of origin, divergence, and their first-order interactions provide statistical support for the positive dS-recombination and dN-recombination associations. Error bars indicate ±1 standard error.

This Article

  1. Genome Res. 20: 1103-1111
