Genome-wide misexpression of X-linked versus autosomal genes associated with hybrid male sterility

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

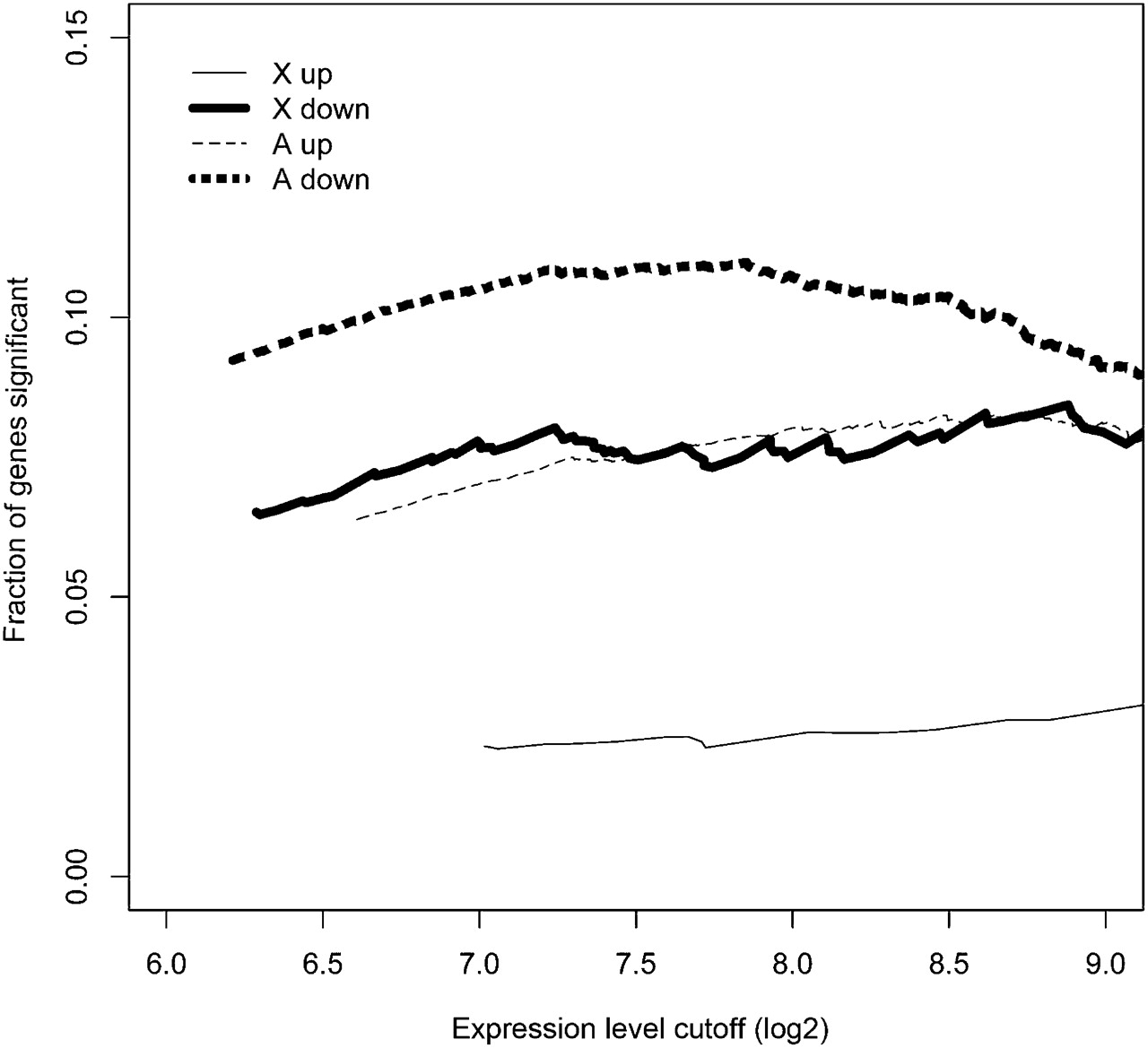

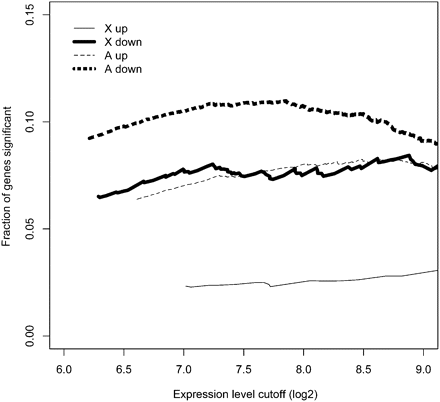

Figure 2.
Figure 2.

Proportion of genes that are significantly misregulated in the testes of S males as a function of the cutoff in calling presence in expression. Misregulation is called by SAM at Δ = 1.6. See Supplemental Figure S2 for further analysis.

This Article

  1. Published in Advance May 28, 2010, doi: 10.1101/gr.076620.108 Genome Res. 20: 1097-1102
