Genome-wide identification of TAL1's functional targets: Insights into its mechanisms of action in primary erythroid cells

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 5.

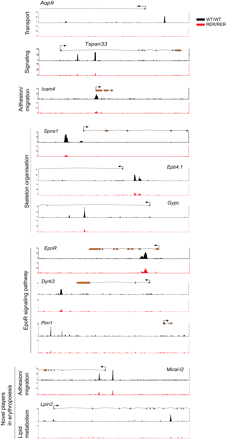

Profile of TAL1 binding on gene loci involved in red cell–specific processes or with functions potentially relevant in erythropoiesis. For each locus are shown (from top to bottom): the RefSeq annotation of the gene or part of the gene (orange, exons; thin lines, introns; arrow, position of the TSS); the ChIP-seq profiles in Tal1^WT/WT (black tracks) and Tal1^RER/RER (red tracks) cells. GO biological processes are indicated at the left of the figure.
