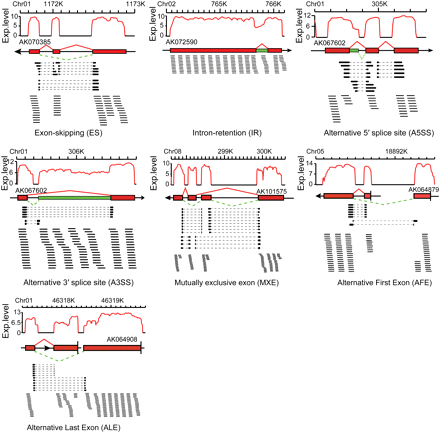

Figure 3.
Alternative splicing events in the rice transcriptome. The schematic depicts the seven primary types of AS events in the rice transcriptome. The red curve indicates the expression level (log2 of RPKM value). The red bar denotes the exon and the red line and green broken line highlight the linkage between two exons that were supported by at least two distinct junction reads. The mapped reads were presented by the short black line, and the junction reads were denoted by the broken reads below the gene structure models. The vertical line shows the transcript start or end sites.
