A new strategy for genome assembly using short sequence reads and reduced representation libraries

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

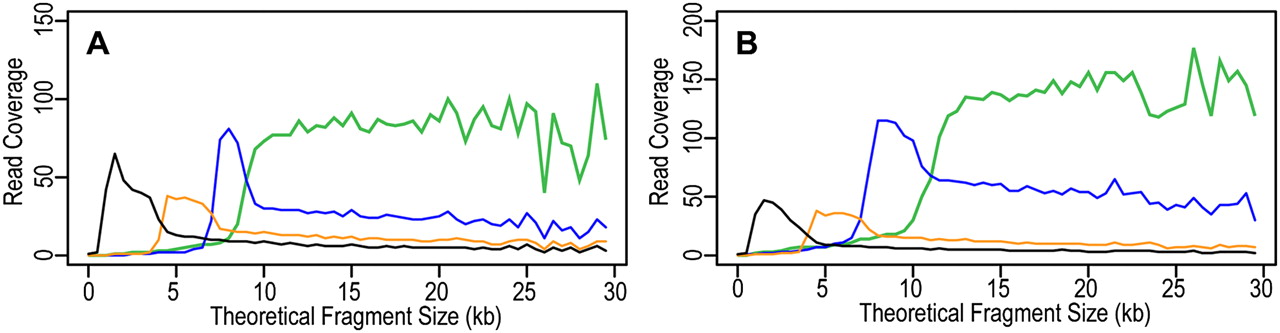

Figure 3.
Figure 3.

Read coverage for the four EcoRI (A) and four HindIII (B) RR libraries sequenced. The reads from each library were aligned to the theoretical fragments generated by restriction enzyme digestion. The short reads from each library 1–4 kb (black), 4–7 kb (orange), 7–9 kb (blue), and 9–30 kb (green) aligned to fragments corresponding to their expected size.
