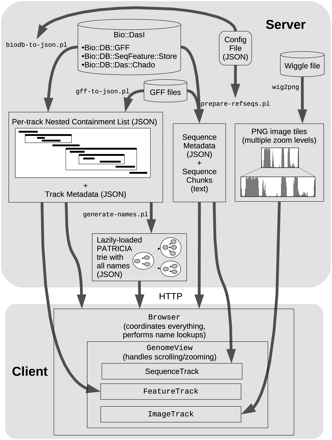

Figure 3.
Schematic of JBrowse architecture showing the components of the server and the client. The “Server” area shows the data served by the web server (rectangles), the programs that generate that data (arrow labels), and the data sources used in turn by those programs (cylinders). The “Client” area shows the main pieces of code that run in the web browser, how they fit together, and what data they consume.
