Does the human X contain a third evolutionary block? Origin of genes on human Xp11 and Xq28

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 2.
Figure 2.

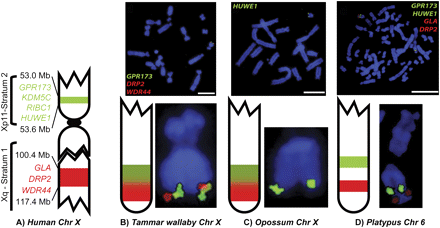

Localization of BAC clones to male marsupial and female monotreme chromosomes. (A) The human X chromosome with the distance from the terminus of the short arm of the stratum 1 and 2 genes given in megabases (Mb). (B) Localization of GPR173 (green), DRP2 (red), and WDR44 (red) to tammar wallaby Xq. (C) Localization of HUWE1 to opossum Xq. (D) Localization of GPR173 (green), HUWE1 (green), and GLA/DRP2 (red) to platypus chromosome 6q. Scale bar, 10 μm.

This Article

  1. Published in Advance May 13, 2009, doi: 10.1101/gr.088625.108 Genome Res. 19: 1350-1360
