Angela Taddei; Griet Van Houwe; Shigeki Nagai; Ionas Erb; Erik van Nimwegen; Susan M. Gasser

The functional importance of telomere clustering: Global changes in gene expression result from SIR factor dispersion

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

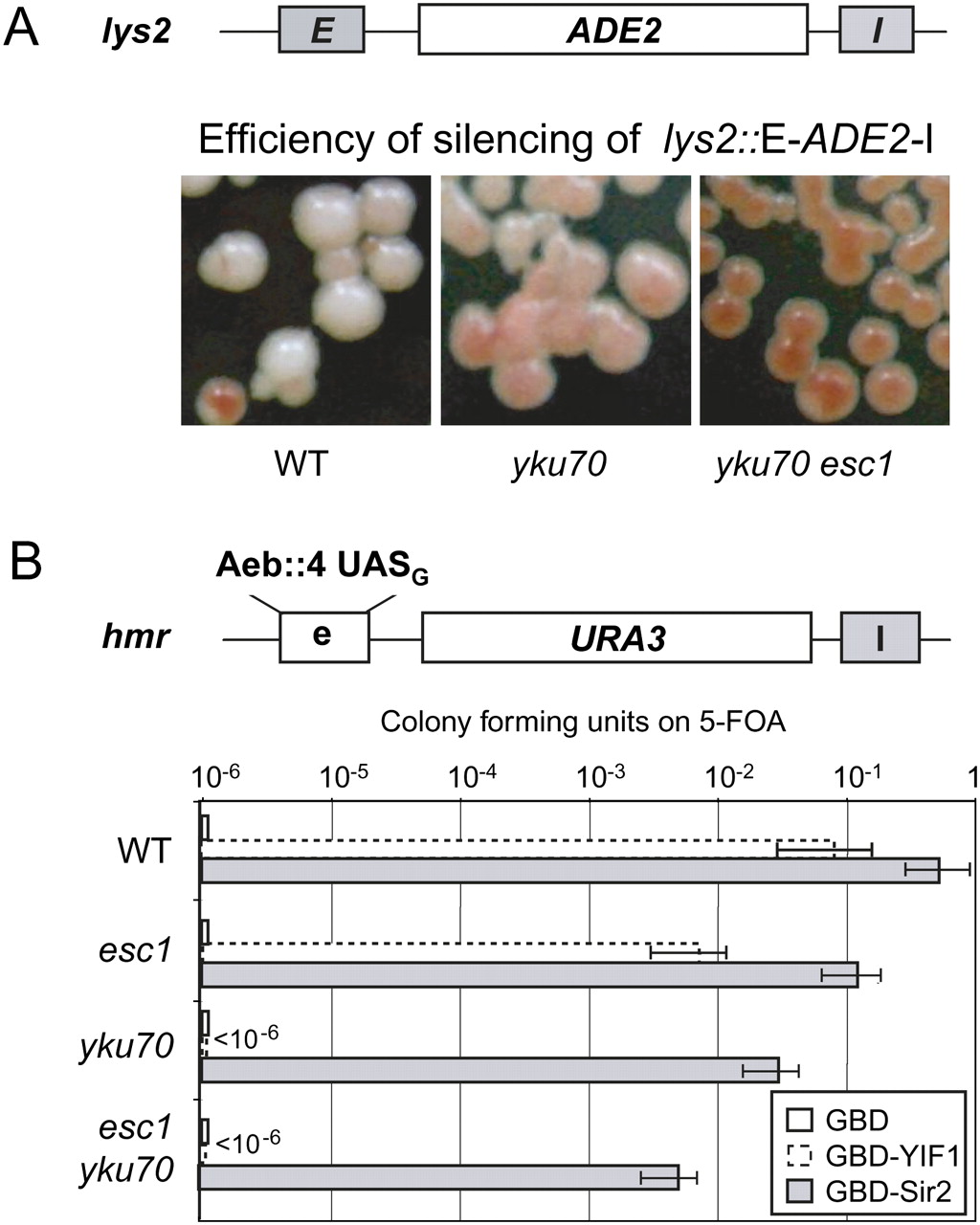

Figure 3.

Esc1 and Yku70 cooperate to sequester SIR proteins at the NE. (A) Efficiency of ectopic silencing at lys2∷E-ADE2-I in GA-2511 (WT), and derivatives carrying full deletions of either yku70 (GA-2585) or yk70 esc1 (GA-2902). (B) Targeted silencing at the hmr∷e-URA3-I reporter is monitored as in Figure 1 in GA-2511 (WT), and derivatives carrying full deletions of either yku70 (GA-2585), esc1 (GA-2886), or yk70 esc1 (GA-2902).
