A canonical promoter organization of the transcription machinery and its regulators in the Saccharomyces genome

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 7.
Figure 7.

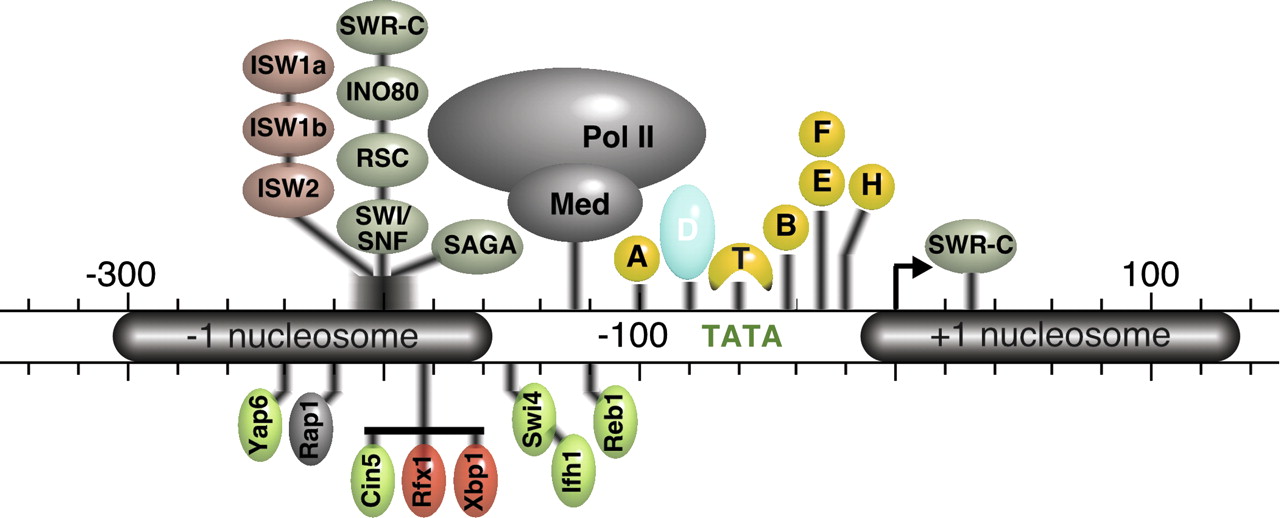

Illustration of the spatial assembly of the transcription machinery and chromatin regulators at promoters bracketed by the −1 and +1 nucleosomes. The coordinate system is based upon the location of the TSS (arrow). Locations are more approximate (±∼20 bp) than indicated by the lines attached to the coordinate. This view is a composite, and thus not all factors occupy the same set of genes.
