A sequence-level map of chromosomal breakpoints in the MCF-7 breast cancer cell line yields insights into the evolution of a cancer genome

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

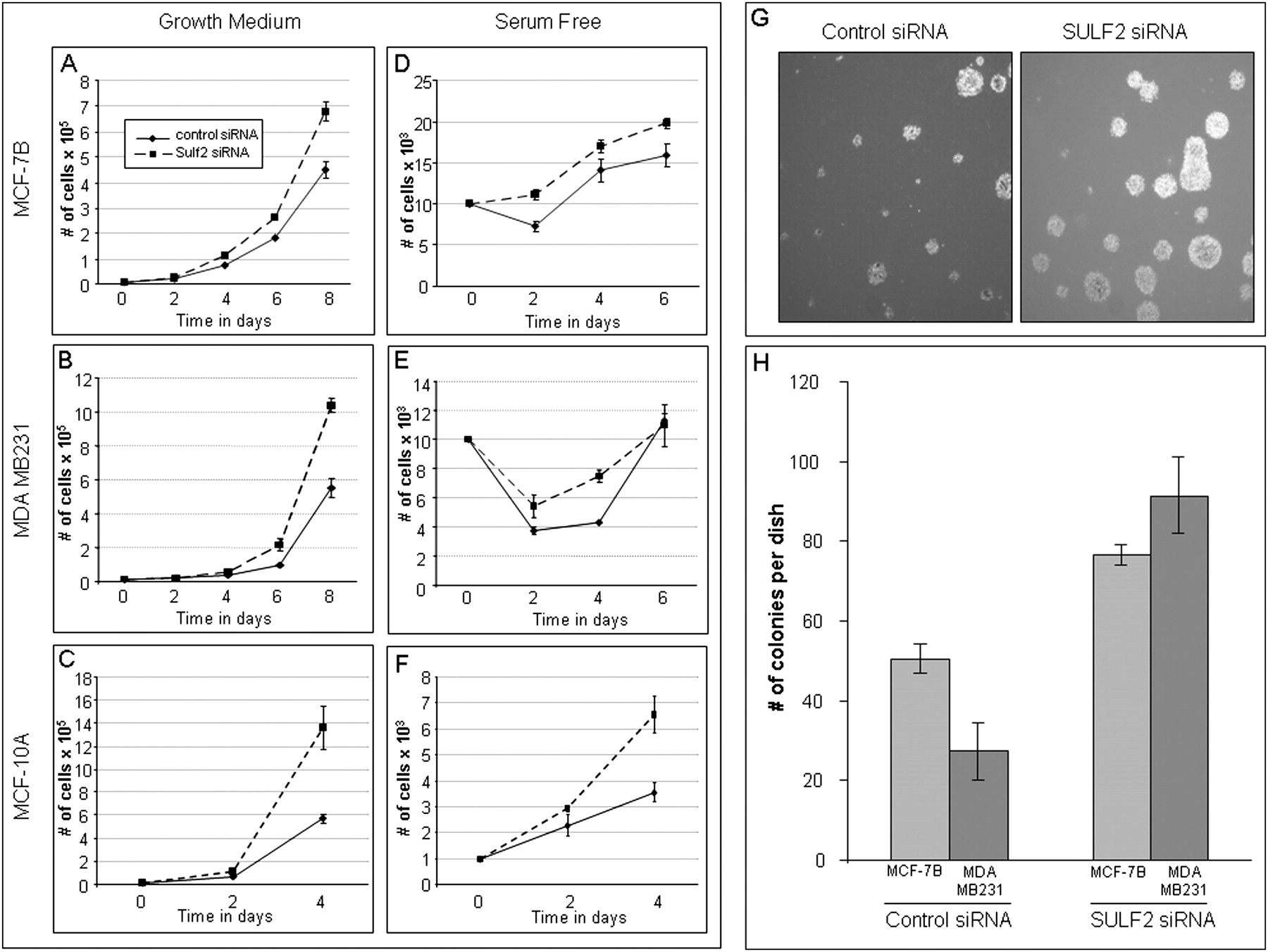

Figure 5.
Figure 5.

(AC) Cells treated with SULF2 siRNA have an enhanced proliferation compared with cells treated with control siRNA. MCF-7B (A; Mao et al. 2005), MDA MD231 (B), and MCF-10A (C) cells were transfected with 50 nM SULF2 or control siRNA; 104 cells were plated in medium containing 10% FBS 48 h after transfection of the siRNA. Cells were counted on day 2, 4, 6, and 8. Experiments performed in triplicate; error bars show standard deviation. (DF) Cells treated with SULF2 siRNA have an enhanced survival compared with cells treated with control siRNA. MCF-7B (D; Mao et al. 2005), MDA MD231 (E), and MCF-10A (F) cells were transfected with 50 nM SULF2 or control siRNA; 104 cells were plated in serum-free medium 48 h after transfection of the siRNA. Cells were counted on day 2, 4, and 6. Experiments performed in triplicate. Error bars, SD. (G,H) Treatment of MCF-7B and MDA MB231 cells with siRNA for SULF2 increases the anchorage-independent growth capabilities. After treatment with siRNA, 104 cells were plated in 0.3% agar in growth medium, MCF-7B colony formation is shown in G. Plates were incubated for 21 d, and colonies were counted; bar chart results shown in H. Experiments performed in triplicate. Error bars, SD.
