Comparison of diverse developmental transcriptomes reveals that coexpression of gene neighbors is not evolutionarily conserved

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 2.
Figure 2.

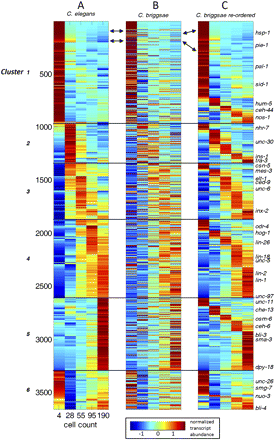

Comparative transcriptomics of nematode embryonic development. (A) For 3658 C. elegans genes, the temporal gene expression profiles cluster by K-means (on correlation coefficients) into six general patterns. (B) Expression profiles of C. briggsae orthologs of the C. elegans genes shown in A. (C) C. briggsae orthologs are reordered within the C. elegans defined clusters. To the right, a few specific genes are indicated. The K-means cluster of each C. elegans and C. briggsae gene is provided in Supplemental Table S3.

This Article

  1. Published in Advance September 10, 2009, doi: 10.1101/gr.093815.109 Genome Res. 19: 2214-2220
