Automatic analysis of dividing cells in live cell movies to detect mitotic delays and correlate phenotypes in time

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

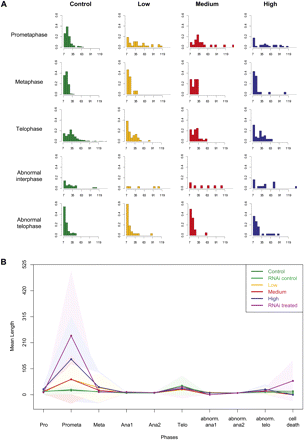

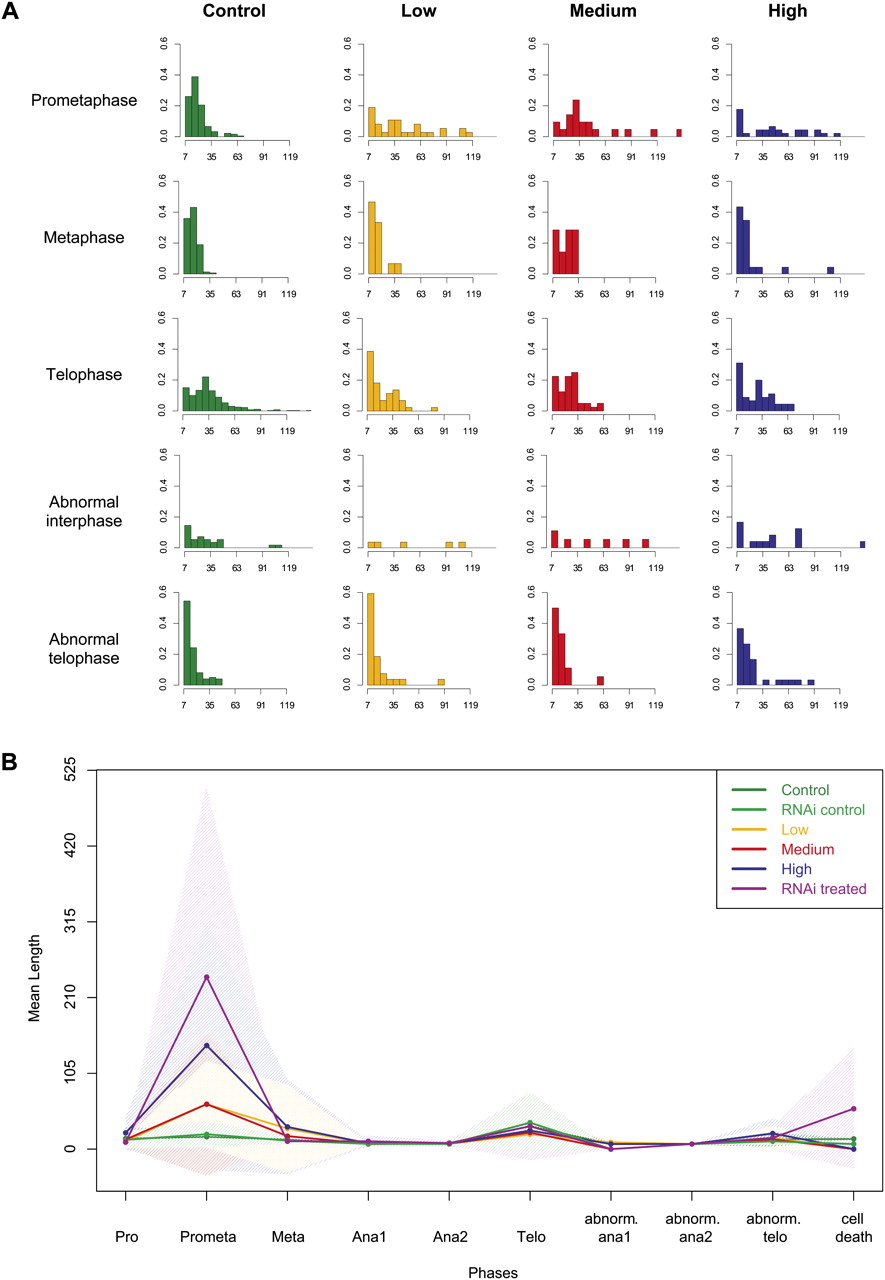

Figure 2.
Figure 2.

Automatically computed phase lengths. (A) Phase length histograms for automatically annotated data. X-axis, phase length (min); y-axis, relative frequency. Histograms are displayed for a maximum length of 140 min (20 time steps). (B) Mean phase lengths (min.) for the automatically annotated data for all treatments and controls. The shaded regions indicate the standard deviations.

This Article

  1. Published in Advance October 1, 2009, doi: 10.1101/gr.092494.109 Genome Res. 19: 2113-2124
