Comparative genomics of protoploid Saccharomycetaceae

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

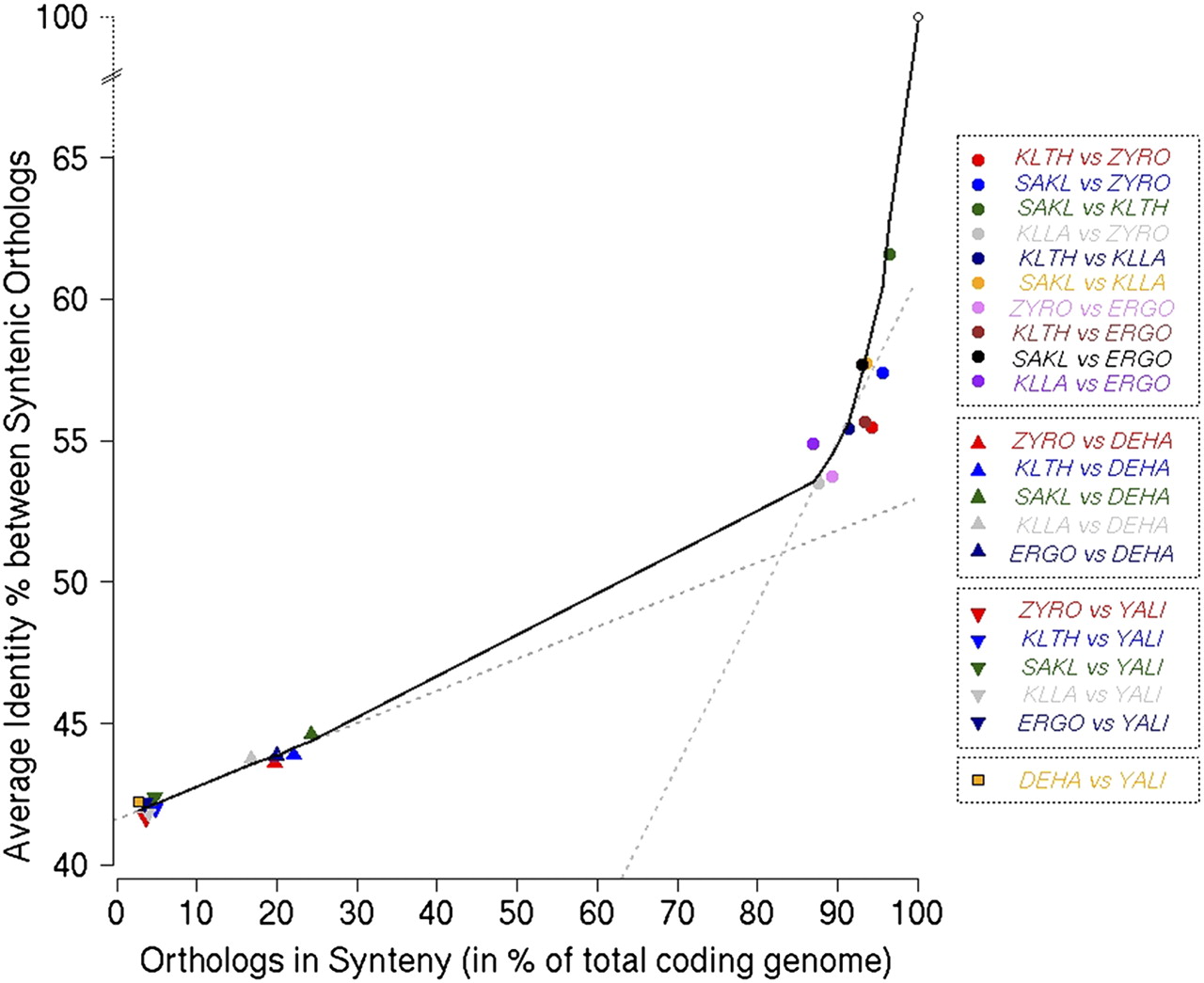

Figure 5.
Figure 5.

Relationship between protein sequence divergence and synteny conservation. Average sequence identities between orthologous proteins (ordinate) in all pairwise species comparisons were calculated from Figure 3. The percent of orthologs remaining in synteny (abscissa) for the same pairs of yeast species is the ratio of the total number of orthologs within syntenic blocks over the total number of orthologs between the two species considered.

This Article

  1. Published in Advance June 12, 2009, doi: 10.1101/gr.091546.109 Genome Res. 19: 1696-1709
