Principles of transcriptional regulation and evolution of the metabolic system in E. coli

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 2.
Figure 2.

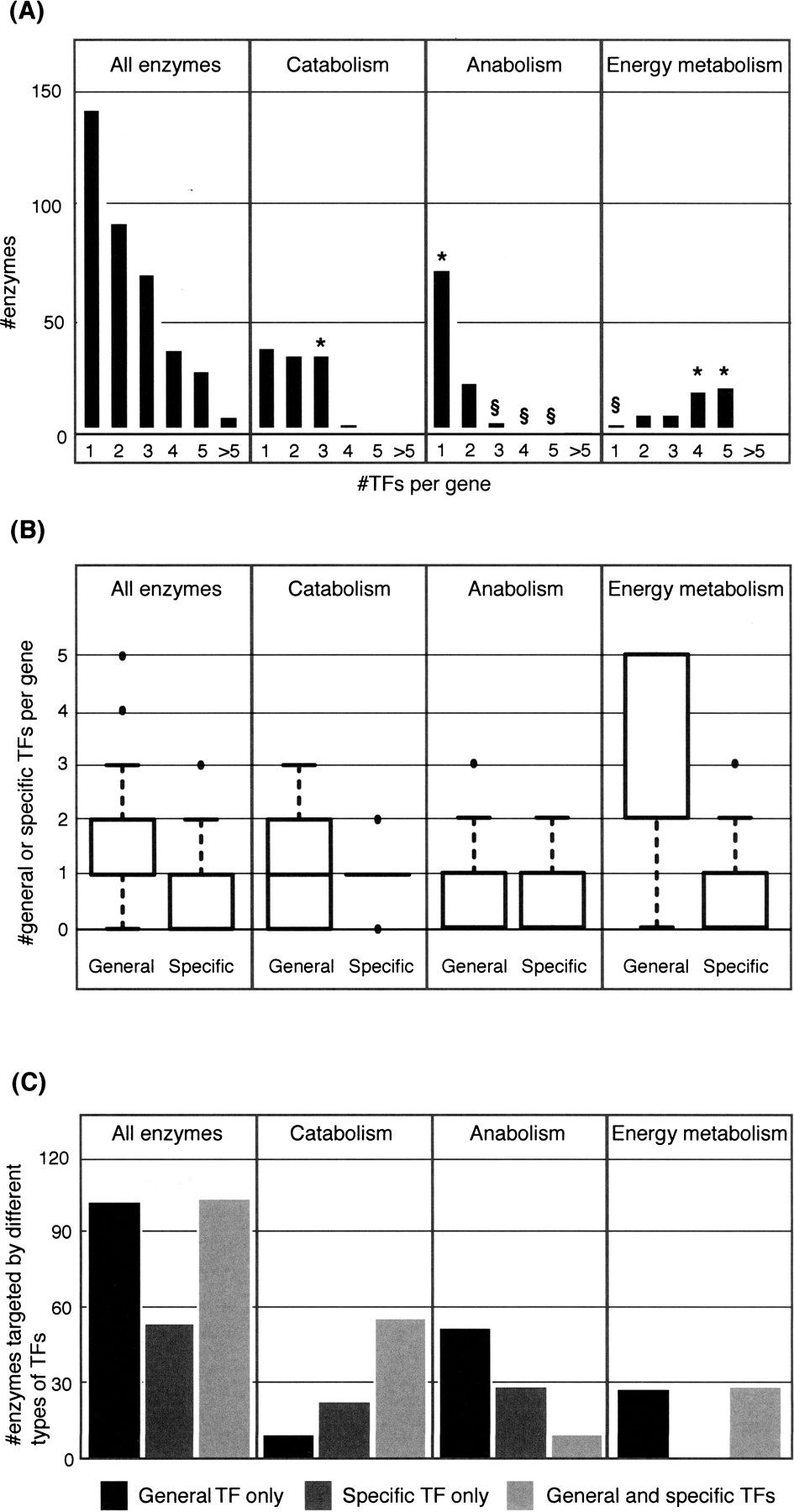

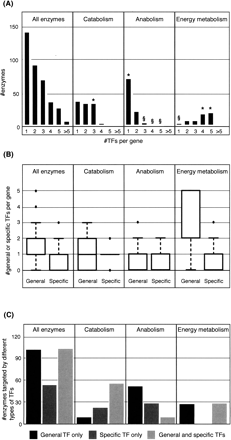

Numbers of TFs controlling metabolic enzymes. (A) Histogram of numbers of TFs regulating all, catabolic, anabolic, and central energy enzymes. (*) Overrepresented groups; (§) underrepresented groups. (B) Box plots of numbers of general and specific TFs targeting different classes of enzymes. (C) Histogram of numbers of enzymes regulated by general TFs only, specific TFs only, and combinations of general and specific TFs.
