Genome sequence of the β-rhizobium Cupriavidus taiwanensis and comparative genomics of rhizobia

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4.

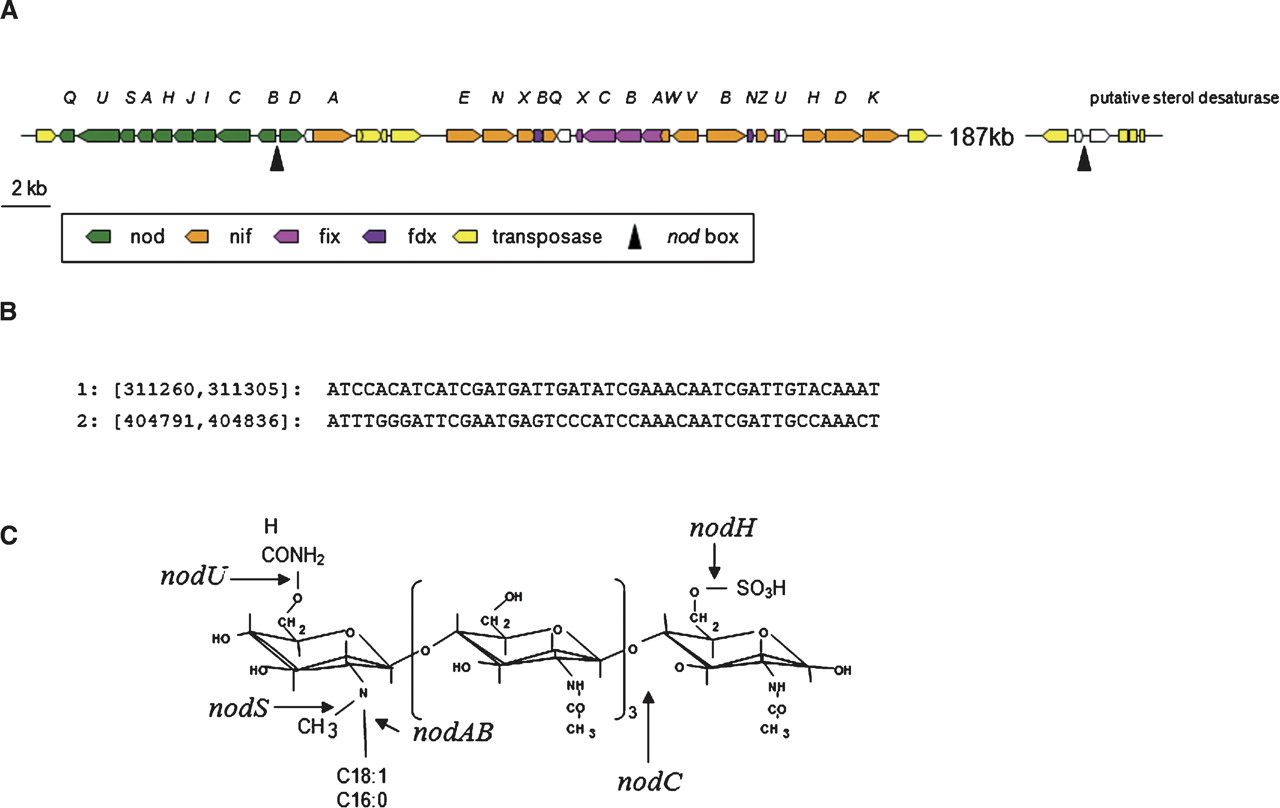

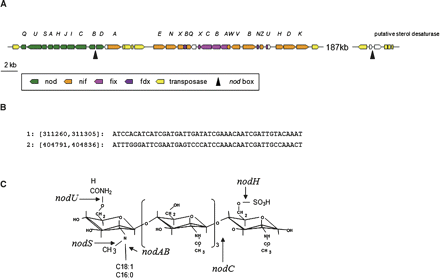

Symbiotic features of C. taiwanensis. (A) Map of symbiotic regions. Genes are colored according to their name. (Arrows) The location of potential nod-boxes. (B) Sequence and position on pRalta of predicted nod-boxes. (C) Chemical structure of Nod factors produced by C. taiwanensis. (Arrows) Contribution of Nod proteins to NF biosynthesis based on the literature.
