A systematic analysis of intronic sequences downstream of 5′ splice sites reveals a widespread role for U-rich motifs and TIA1/TIAL1 proteins in alternative splicing regulation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

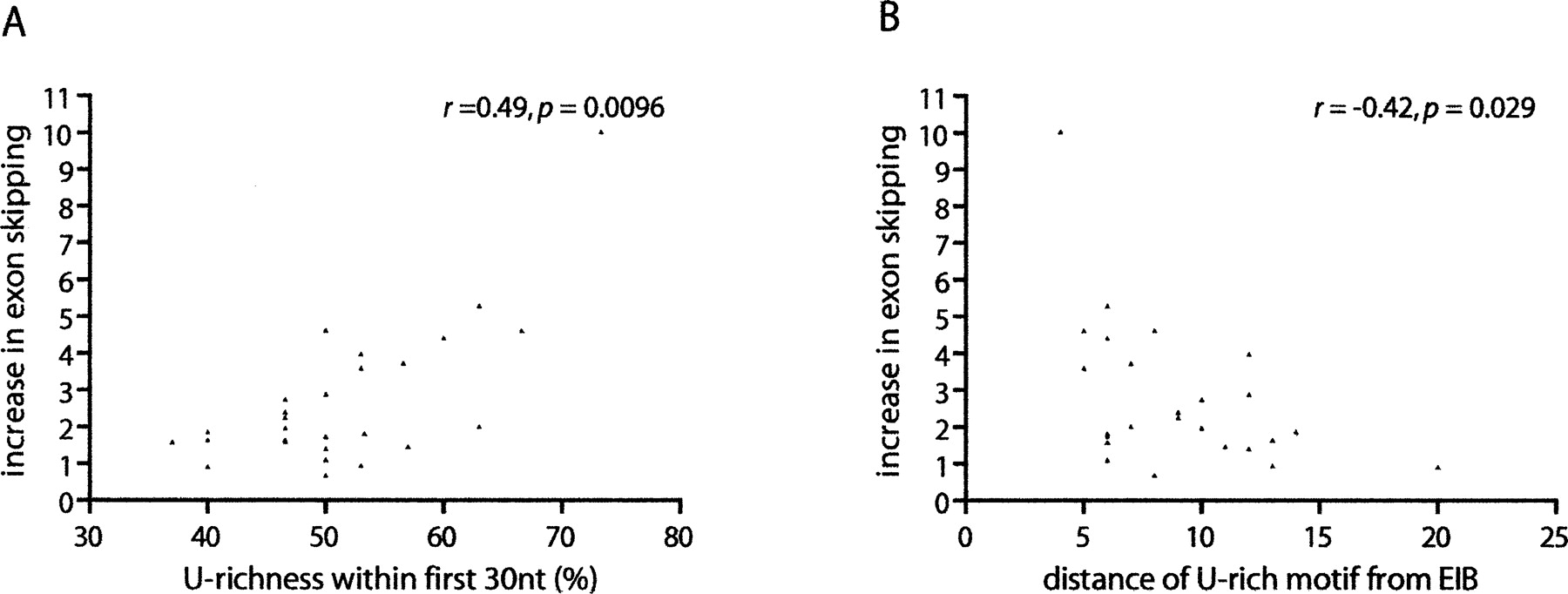

Figure 4.
Figure 4.

The increase in exon skipping correlates with the proportion of U’s and the proximity of the first U-rich motif to the exon–intron boundary. Spearman correlation tests showing significant correlations between the increase in exon skipping upon TIA1/TIAL1 silencing and proportion of U’s within the first 30 nt of the second intron of the splicing cassettes (A), and the proximity of the first U-rich motif to the exon–intron boundary (B). The correlations suggest that exons followed by extended TIA1/TIAL1 binding sites (longer stretches of U’s) and/or by binding sites that are located closer to the 5′ splice sites are more sensitive to the reduced levels of TIA1/TIAL1. EIB, exon–intron boundary; n = 27 alternative splicing cassettes.

This Article

  1. Genome Res. 18: 1247-1258
