SNP-specific array-based allele-specific expression analysis

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

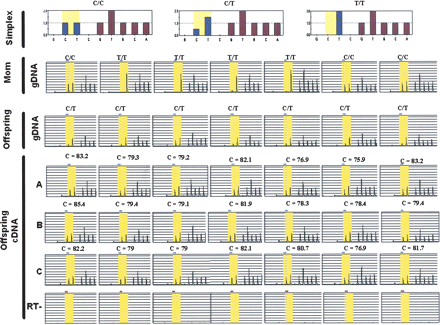

Figure 5.
Figure 5.

ERAP2 demonstrates preferential expression of the C allele in seven cases, but is not affected by parent of origin. Images are assembled as in Figure 4, with cDNA shown in the bottom four rows. Note that the sequence has TT following the (C/T) SNP. Thus, the C/C allele is 2 × C, followed by 2 × T in the simplex, C/T is 1 × C followed by 3 × T, and T/T is 4 × T.
