Massively parallel bisulphite pyrosequencing reveals the molecular complexity of breast cancer-associated cytosine-methylation patterns obtained from tissue and serum DNA

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

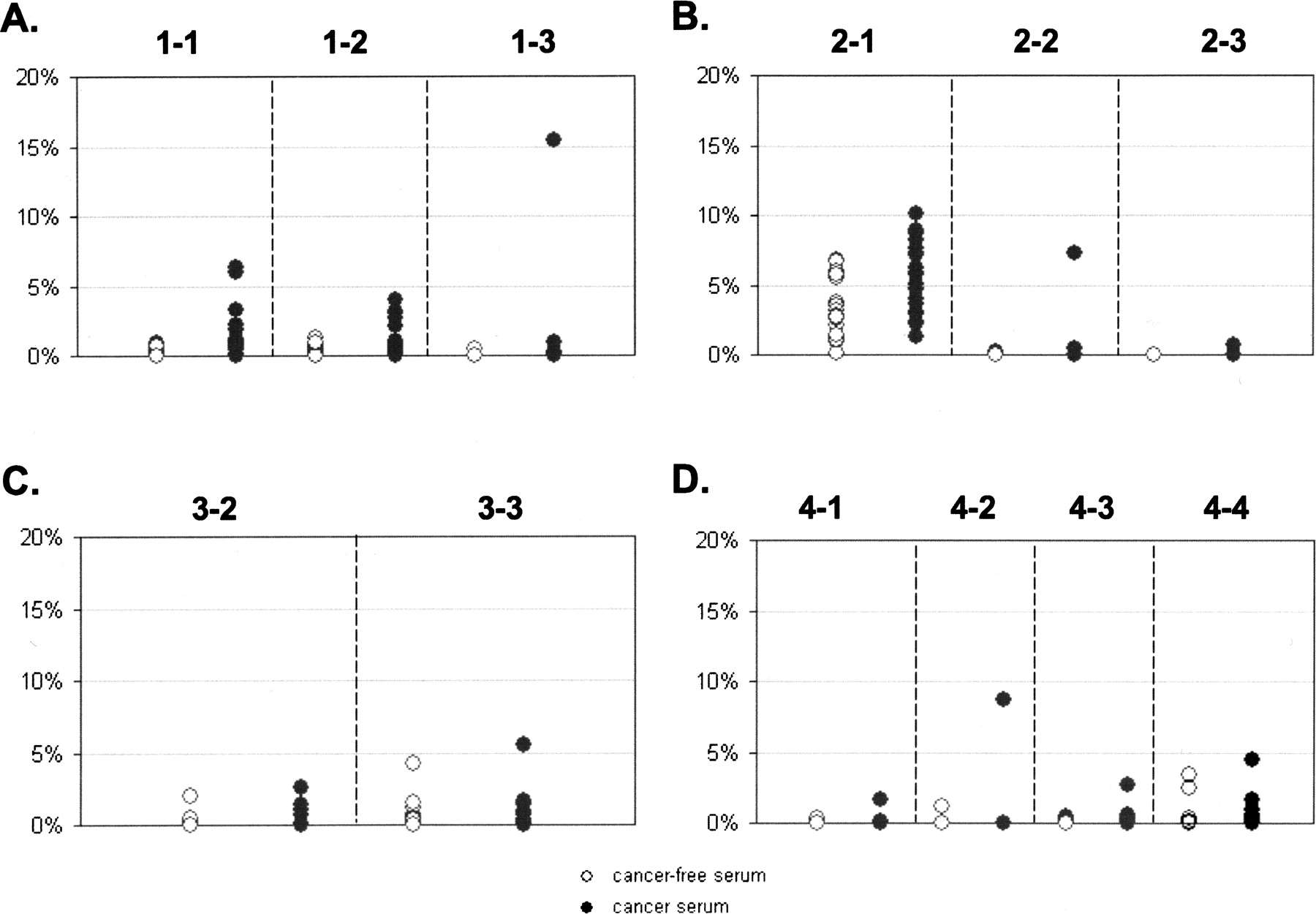

Figure 8.
Figure 8.

Percent of FMM in serum samples The plots represent detection of FMMs in serum samples for loci GHSR (A), MGA (B), NFX1 (C), and ha1g_00644 (D). Y axis represents percent of FMMs from the total number of sequenced molecules. The dashed lines separate data obtained from the different amplicons. The numbers on the top of each plot indicate the amplicons that were used to generate the data beneath. (◦) Serum samples of cancer-free individuals; (●) represent serum samples of cancer patients. Note that the scale is 20%.

This Article

  1. Published in Advance November 21, 2007, doi: 10.1101/gr.6883307 Genome Res. 18: 19-29
