Genomics, transcriptomics, and peptidomics of neuropeptides and protein hormones in the red flour beetle Tribolium castaneum

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

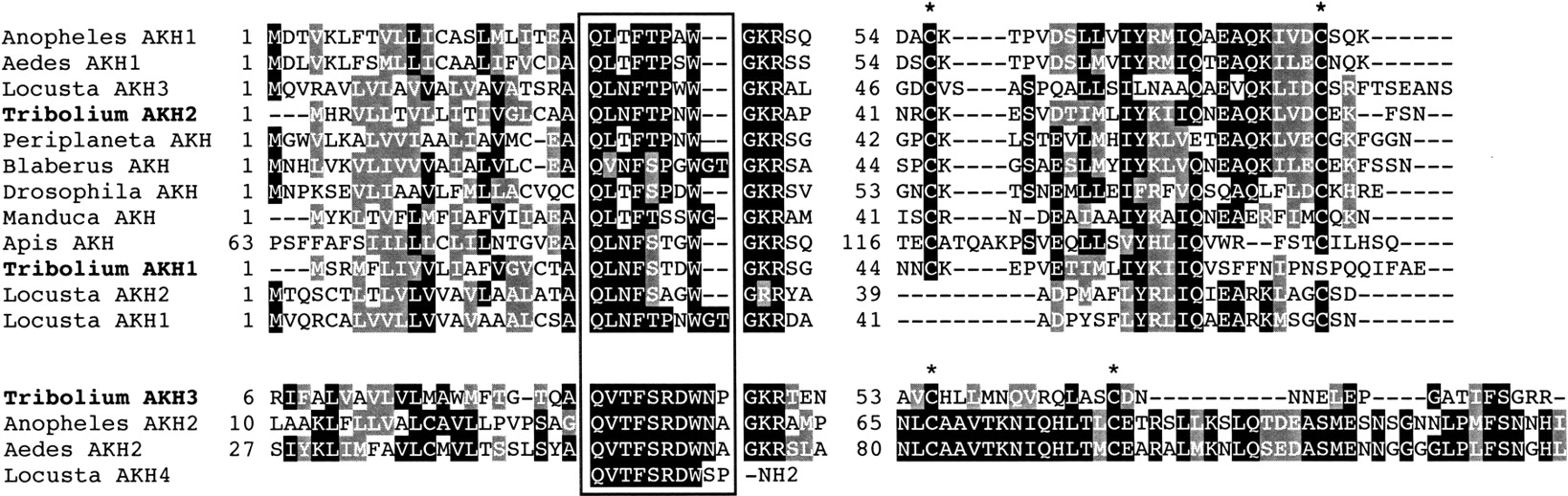

Figure 7.
Figure 7.

Sequence alignment of adipokinetic hormones (AKH). The mature peptides are in the box and followed by the glycine required for amidation and dibasic cleavage sites. Conserved cysteines are marked by asterisks (*) on the top of the alignment. Note that the middle of the sequence is omitted. Sequences are from Anopheles_AKH1 (ABD43194.1), Aedes_AKH1(EAT35885.1), Locusta_AKH3 (P19872), Periplaneta_AKH (AAV41425.1), Blaberus_AKH (Q17128), Drosophila_AKH (NP_523918.1), Manduca_AKH (P67788), Apis_AKH (from Hummon et al. 2006), Locusta_AKH2 (P08379), Locusta_AKH1 (P55319), Anopheles_AKH2 (ABD60145.1), Aedes_AKH2 (EAT37004.1), and Locusta_AKH4 (Siegert 1999).

This Article

  1. Published in Advance November 19, 2007, doi: 10.1101/gr.6714008 Genome Res. 18: 113-122
