Genomics, transcriptomics, and peptidomics of neuropeptides and protein hormones in the red flour beetle Tribolium castaneum

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 6.
Figure 6.

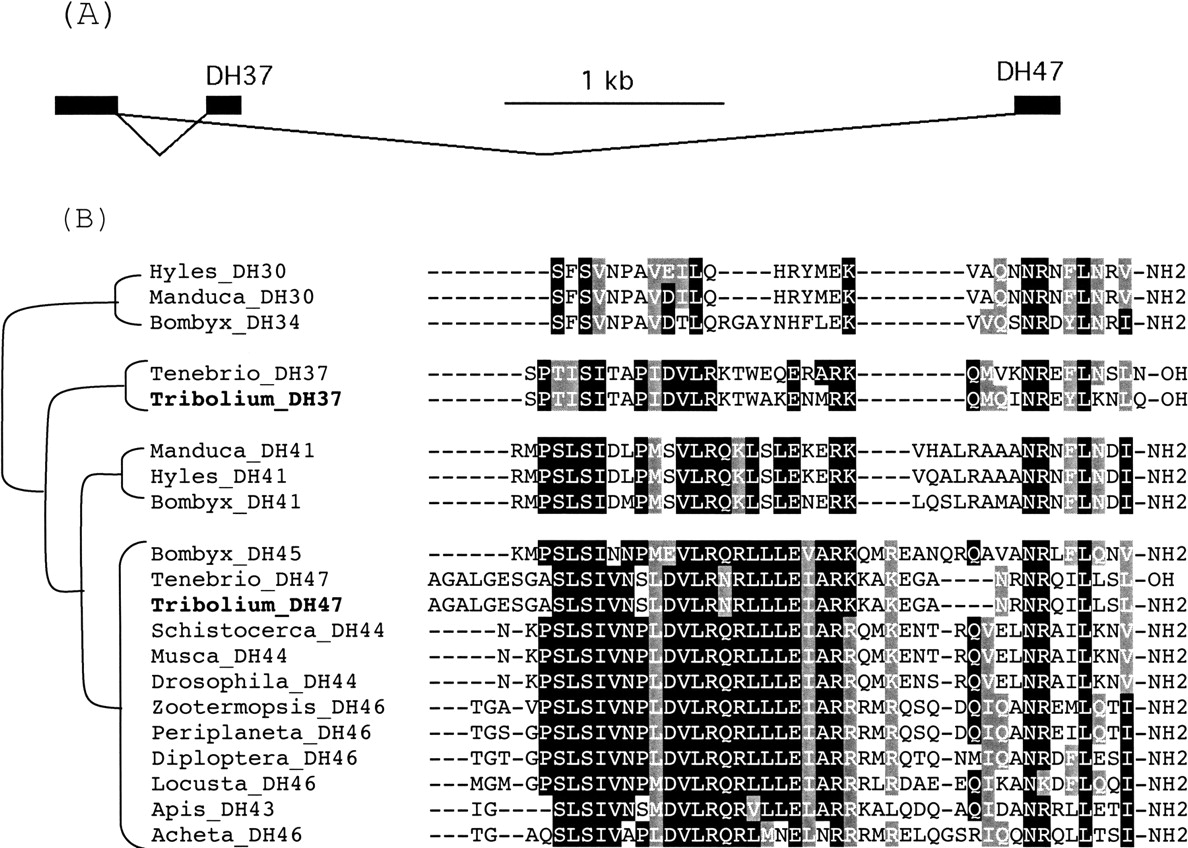

Sequence alignment and phylogenetic relationships of insect corticotropin releasing factor (CRF)-like diuretic hormones (DH). The hypothetical tree implies possible evolutionary relationships among the DHs from different species of insects. Sequences are from Hyles_DH30 (P82015), Manduca_DH30 (P24858), Tenebrio_DH37 (P56618), Tribolium_DH37 (GLEAN_02243), Manduca_DH41 (AAB59200.1), Hyles_DH41 (P82014), Tenebrio_DH47 (P56619), Tribolium_DH47, Schistocerca_DH44 (P67801), Musca_DH44 (P67800), Drosophila_DH44 (NP_649922.2), Zootermopsis_DH46 (P82707), Periplaneta_DH46 (P41538), Diploptera_DH46 (P82373), Locusta_DH46 (AAB19827.1), Apis_DH43 (CAI45289.1), and Acheta_DH46 (P23834). The three Bombyx DHs were from the GenBank genome database. Amino acid numbers are not indicated because many have only mature peptide sequences in the GenBank.

This Article

  1. Published in Advance November 19, 2007, doi: 10.1101/gr.6714008 Genome Res. 18: 113-122
