Direct linkage of mitochondrial genome variation to risk factors for type 2 diabetes in conplastic strains

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

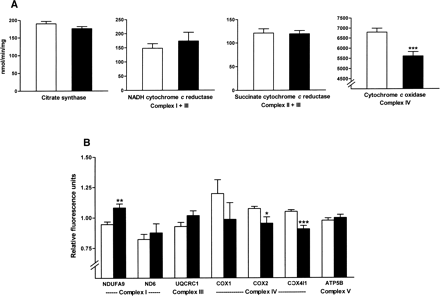

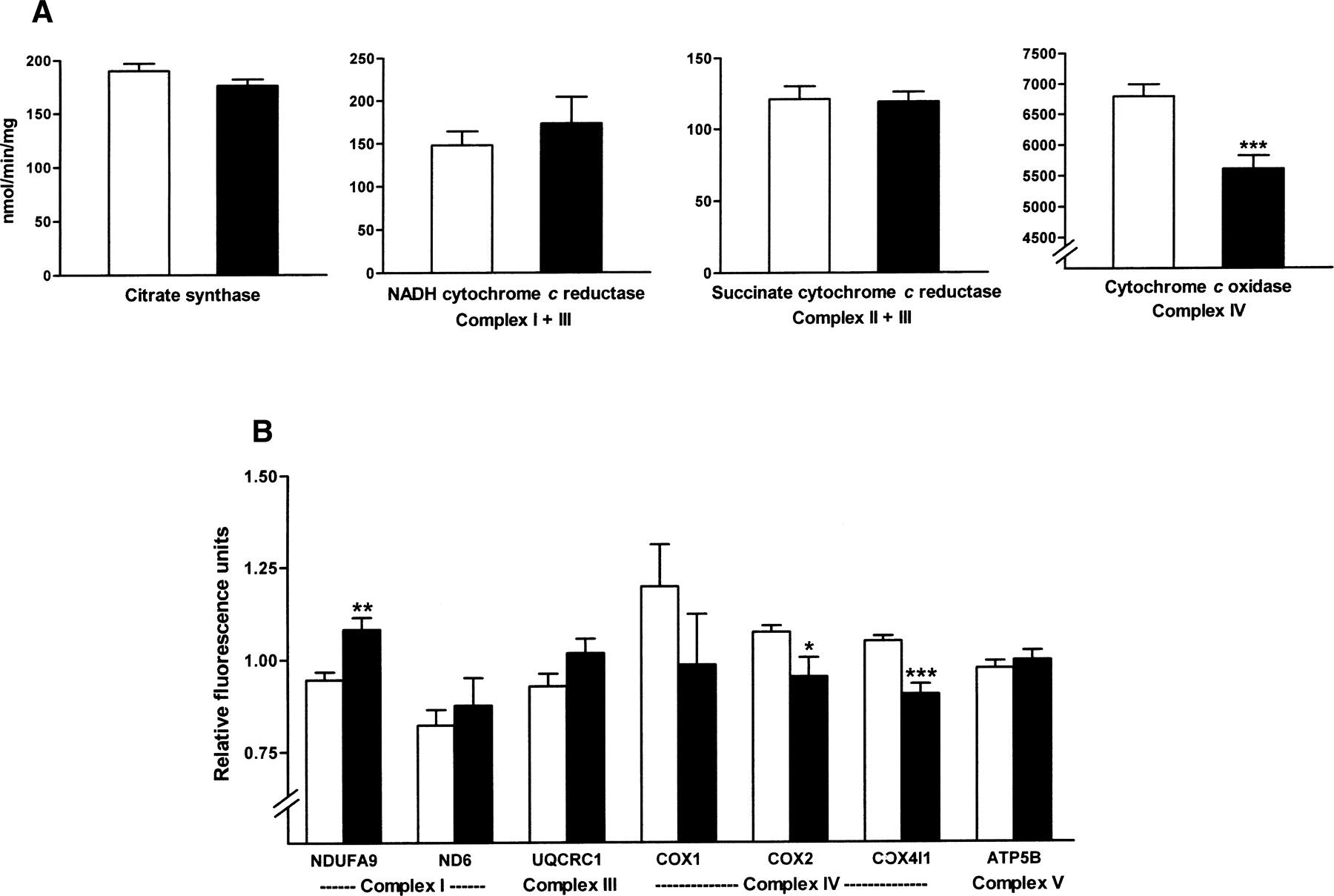

Figure 2.
Figure 2.

Mitochondrial enzyme activities and protein levels in the SHR progenitor strain and SHR conplastic strain. (A) Activity levels of citrate synthase, NADH cytochrome c reductase (NCCR), succinate cytochrome c reductase (SCCR), and cytochrome c oxidase in liver mitochondria isolated from the SHR progenitor strain (open bars) and SHR conplastic strain (solid bars). The activity of cytochrome c oxidase was significantly lower in the SHR conplastic strain (n = 6) than the SHR progenitor strain (n = 6, P < 0.001). (B) Mitochondrial protein content in the SHR progenitor strain (n = 6) and SHR conplastic strain (n = 6). Results are expressed as relative fluorescence units determined after loading equivalent amounts of total mitochondrial protein for each sample. (NDUFA9) 39-kDa subunit of NADH:ubiquinone oxidoreductase; (ND6) mitochondrial NADH dehydrogenase subunit 6; (UQCRC1) core 1 subunit of ubiquinol:ferricytochrome c oxidoreductase; (COX1) mitochondrial cytochrome c oxidase subunit 1; (COX2) mitochondrial cytochrome c oxidase subunit 2; (COX4I1) cytochrome c oxidase subunit 4 isoform 1; (ATP5B) β-subunit of the F1F0 ATP synthase; (***) P < 0.001; (**) P < 0.01; (*) P = 0.05 in comparisons between the SHR progenitor and conplastic strains by Student’s t-test.
