Centromere RNA is a key component for the assembly of nucleoproteins at the nucleolus and centromere

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 8.
Figure 8.

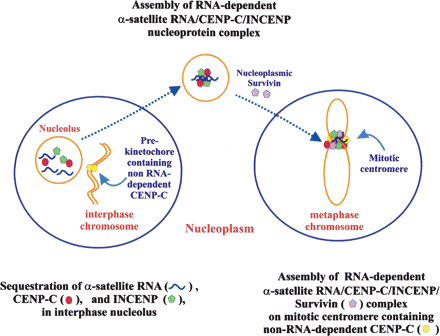

A model for the assembly of human centromere-associated nucleoprotein components at the interphase nucleolus and mitotic centromere. The nucleolar and centromeric accumulation of CENPC1, INCENP, and/or survivin is dependent on the presence of single-stranded α-satellite RNA. The nucleolus may serve as an interphase storehouse for the sequestration of centromere-associated nucleoprotein components and facilitate the assembly of these components into complexes, prior to their release into the nucleoplasm for relocation, together with additional nucleoplasmic centromere-associated protein components such as survivin, onto the mitotic centromere.
