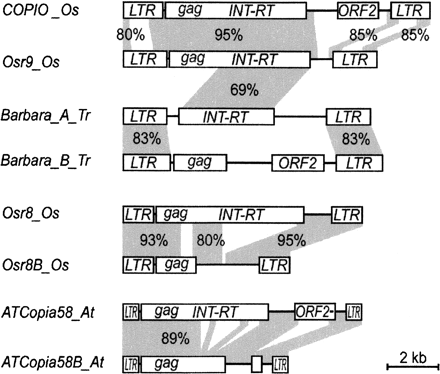

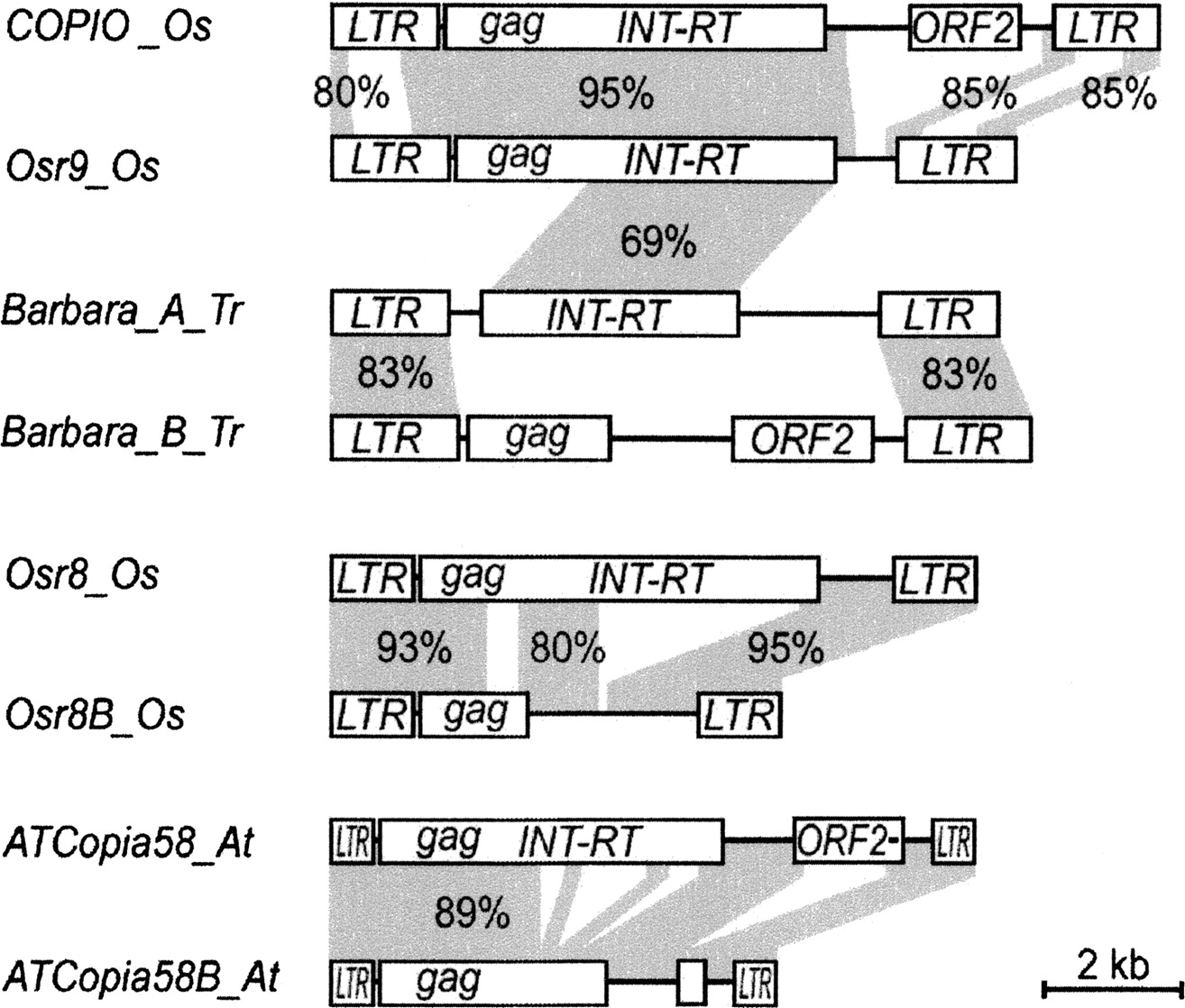

Figure 3.
Deletion derivatives in copia elements of the Maximus lineage. Gray areas represent regions conserved between elements with the degree of DNA sequence identity indicated. The low degree of sequence conservation (69%) between the rice Osr9 elements and the Triticeae Barbara elements shows that the loss of the ORF2 region in each family was the result of an independent deletion event.
