A comprehensive computational characterization of conserved mammalian intronic sequences reveals conserved motifs associated with constitutive and alternative splicing

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4.
Figure 4.

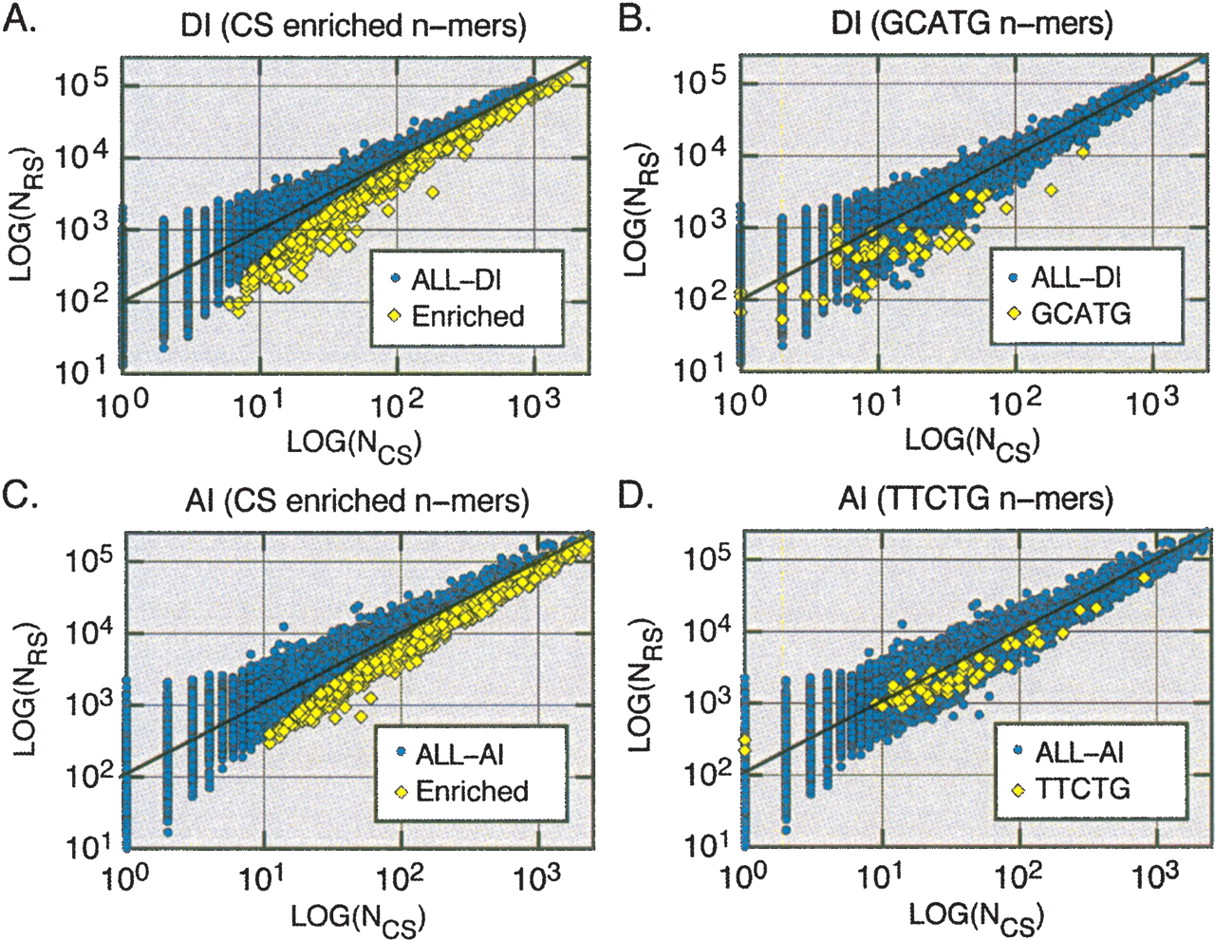

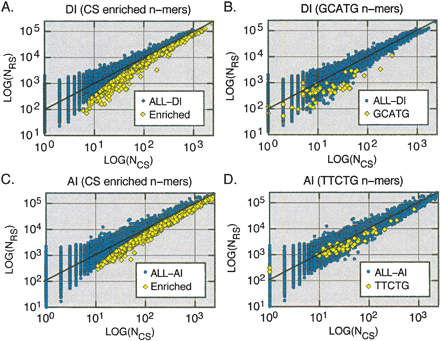

Scatter-plots for the counts of all n-mers (4–7 nt) in the CS samples (NCS) vs. the counts in the corresponding random samples (NRS). Overlaid on plots A and C are the n-mers that were significantly enriched (according to the confidence intervals described in the Supplemental Materials and Methods) in the donor intronic (DI) and acceptor intronic (AI) regions. Overlaid on plots B and D are all n-mers containing the substrings indicated. These substrings are examples of substrings that are enriched in the corresponding regions.

This Article

  1. Published in Advance May 24, 2007, doi: 10.1101/gr.6017807 Genome Res. 17: 1023-1033
