Distinct class of putative “non-conserved” promoters in humans: Comparative studies of alternative promoters of human and mouse genes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4.
Figure 4.

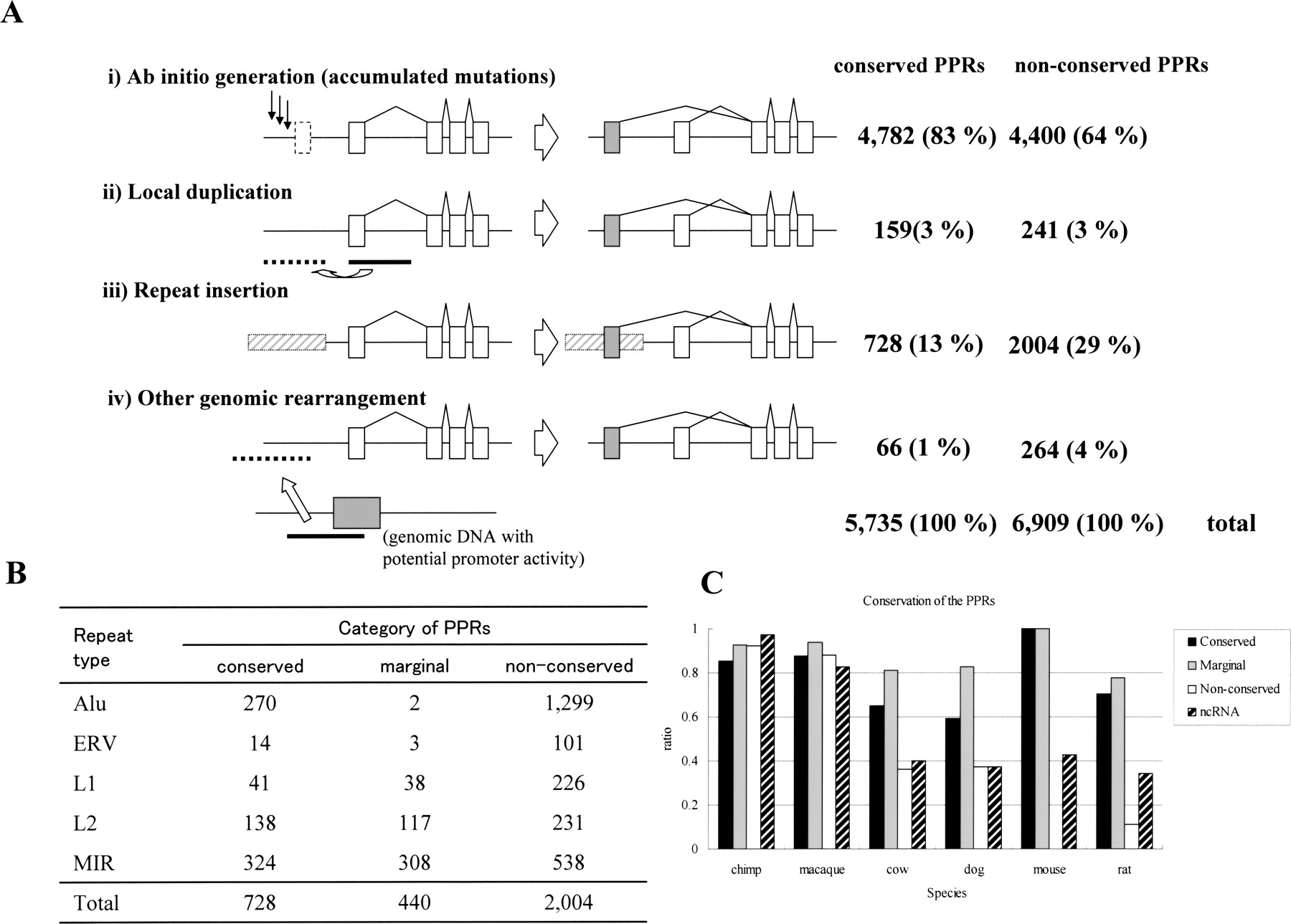

Possible origin of the conserved and non-conserved PAPs. (A) The numbers of the PPRs which showed the indicated patterns of possible evolutional origin are shown. (B) Repetitive elements identified in each category of the PPRs. (C) The frequency of the human PPRs for which corresponding PPRs or syntenic genomic regions could be identified in the genomes of the indicated species is shown.

This Article

  1. Published in Advance June 13, 2007, doi: 10.1101/gr.6030107 Genome Res. 17: 1005-1014
