Prominent use of distal 5′ transcription start sites and discovery of a large number of additional exons in ENCODE regions

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 9.
Figure 9.

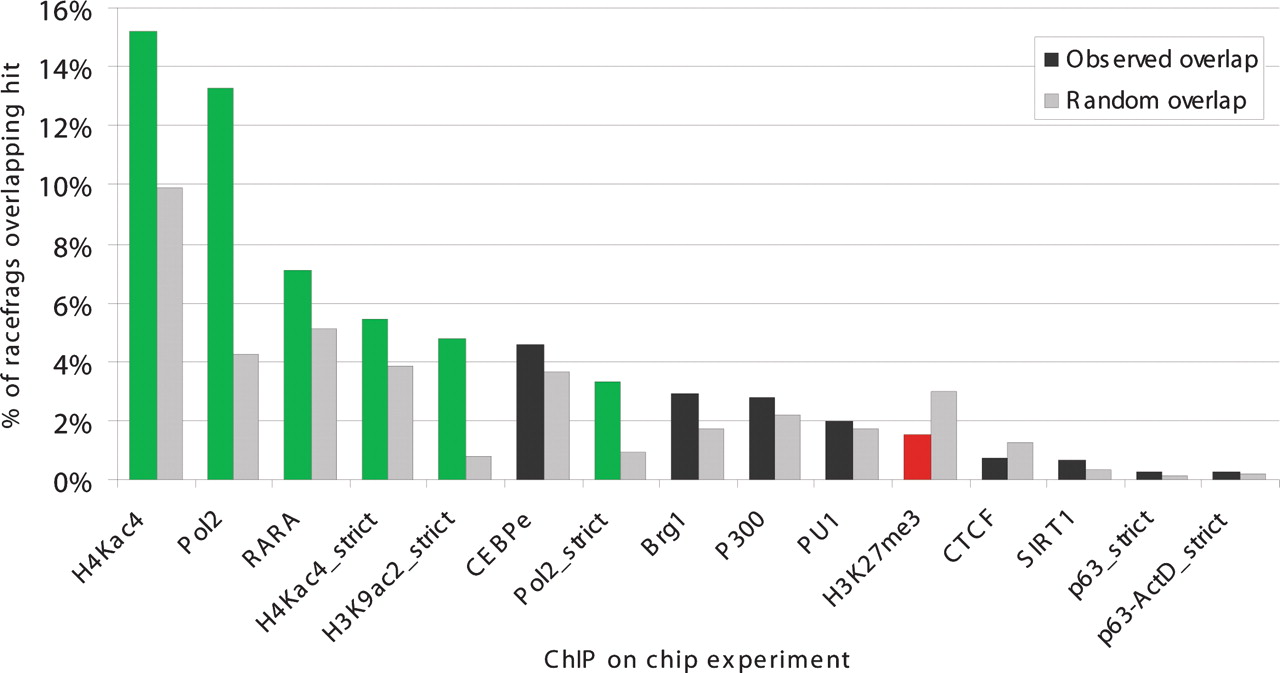

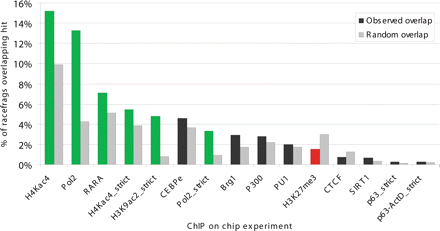

Overlap of RACEfrags with protein-binding sites and chromatin modifications. Proportion of RACEfrags in the real (dark gray) and random (light gray) sets overlapping protein-binding or chromatin modification sites. Significant enrichments (green) and reductions (red) (p < 0.05) are highlighted. The data are shown for the 791 RACEfrags, protein-binding, and chromatin modification sites identified in HL60 cells.
