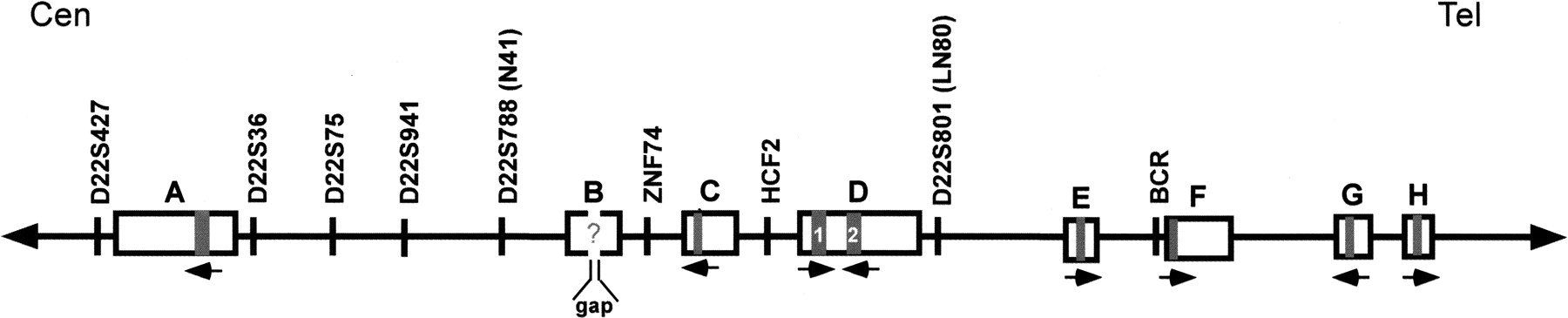

Figure 7.
BCRL modules within the 22q11 LCRs. The region of 22q11 containing LCR-A–LCR-H is shown. The LCRs are labeled and shown as white boxes. The BCRL modules within each LCR are shown as gray boxes. The gap within the sequence of LCR-B is indicated. The “?” denotes the unknown status of the presence or absence of a BCRL module within LCR-B. The two copies of BCRL in LCR-D are denoted as “1” and “2.” The relative orientation of the BCRL modules with respect to each other is indicated with directional arrows.
