Figure 2.

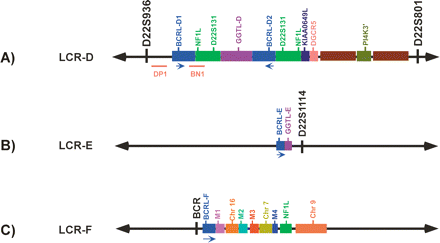

Structure and organization of LCR-D, LCR-E, and LCR-F. The spatial arrangement of duplicated modules within LCRs D, E, and F are shown as colored boxes, and the markers within them are indicated above in the same color as the boxes. The orientation of each LCR is centromere to telomere. Arrows below the BCRL-containing modules indicate their orientation with respect to the other LCRs. Unique markers flanking the LCRs are shown in black. The locations of PCR fragments DP1 and BN1 are shown.
