Using genomic data to unravel the root of the placental mammal phylogeny

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 3.
Figure 3.

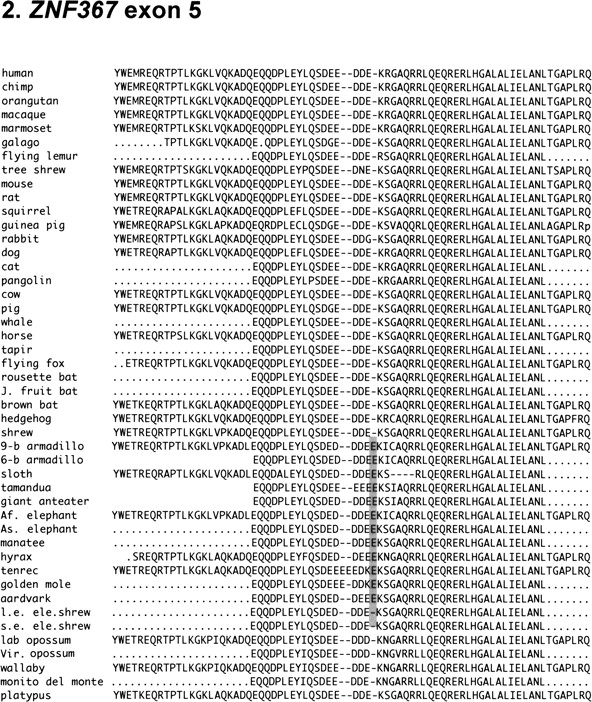

Alignment of ZNF367 exon 5 sequences from 46 mammals. A single amino acid insertion shared by all xenarthrans and afrotherians is highlighted with a box. Full-length amino acid sequences are derived from full genome sequences or traces. Sequences with truncated ends were generated by PCR using conserved primers in the exon flanking the indel.

This Article

  1. Published in Advance February 23, 2007, doi: 10.1101/gr.5918807 Genome Res. 17: 413-421
