Evidence for large inversion polymorphisms in the human genome from HapMap data

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

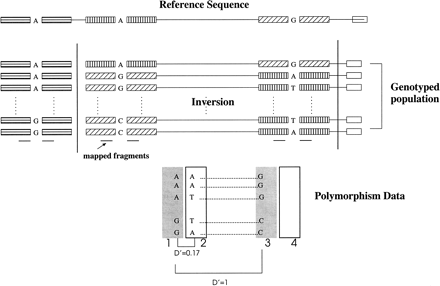

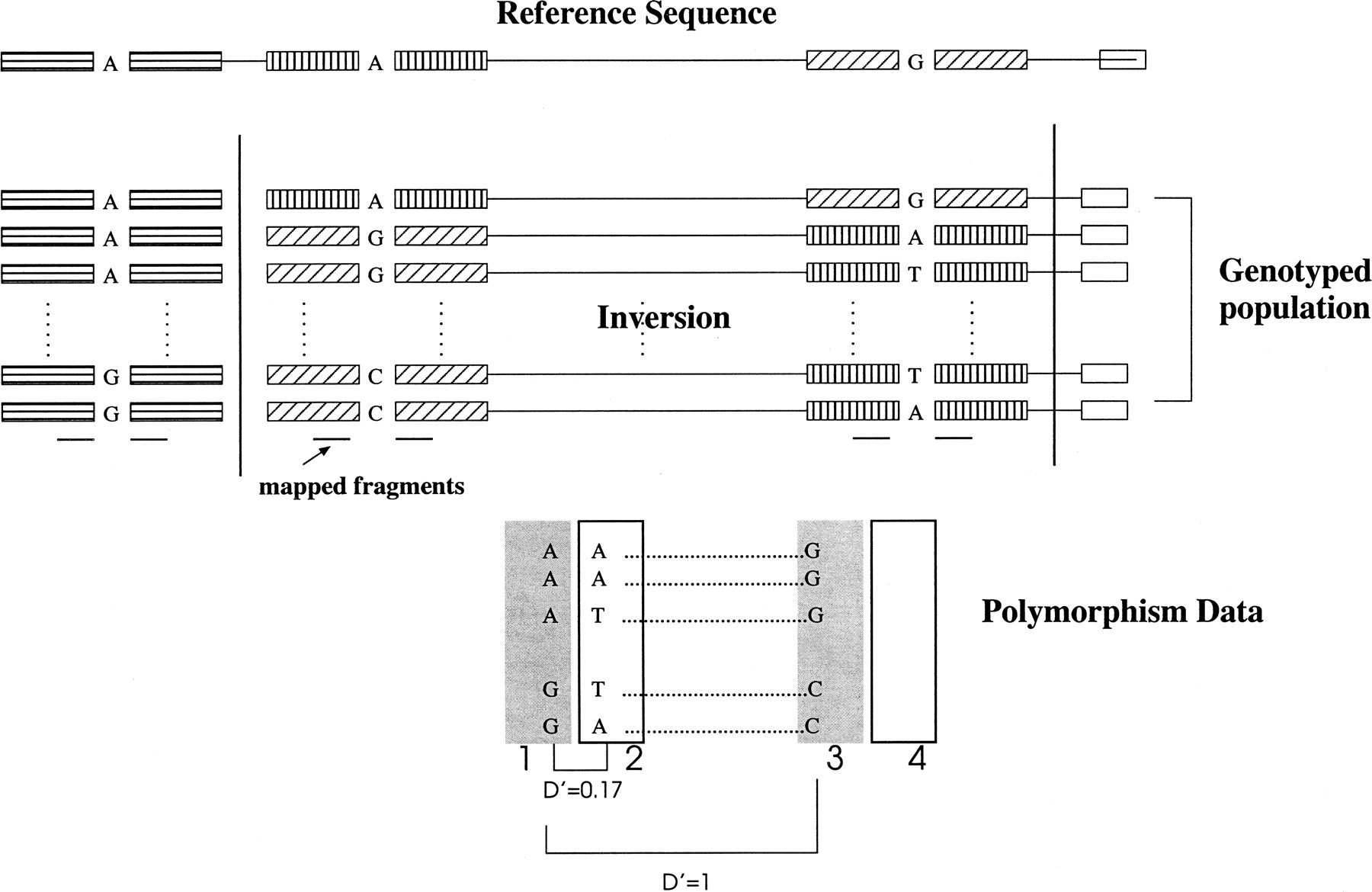

Figure 1.
Figure 1.

Unusual LD observed in SNP data when the inverted haplotype (with respect to the reference sequence) has very high frequency. SNPs are “mapped” to the reference sequence using the flanking sequence (denoted by shaded boxes). Therefore, close SNPs in high LD are mapped to distant regions 1 and 3 (the shaded boxes). Consequently, the two regions show unusually high LD for that distance.

This Article

  1. Published in Advance December 21, 2006, doi: 10.1101/gr.5774507 Genome Res. 17: 219-230
