Reductive evolution and niche adaptation inferred from the genome of Mycobacterium ulcerans, the causative agent of Buruli ulcer

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4.
Figure 4.

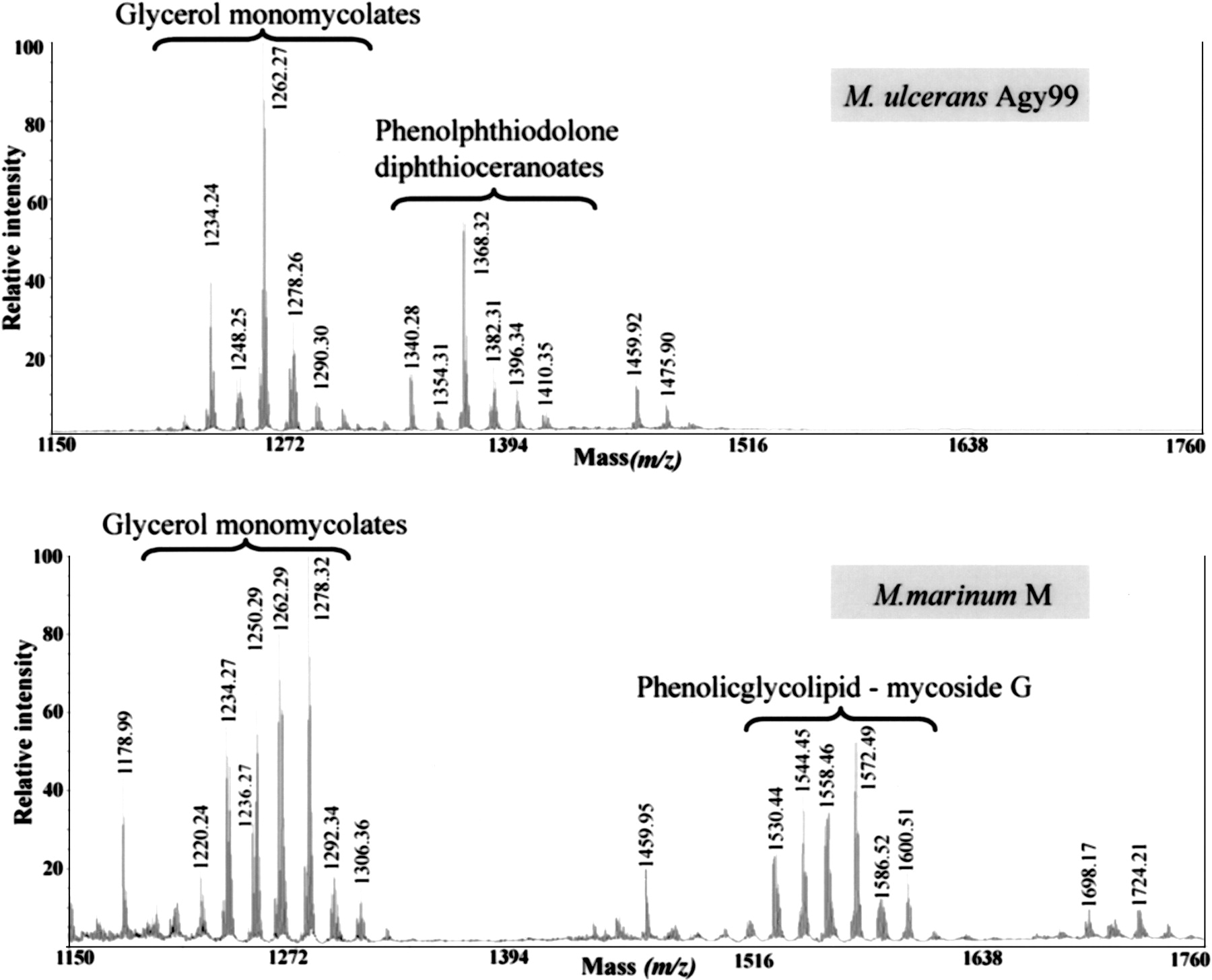

Partial matrix-assisted laser desorption ionization-time-of-flight (MALDI-TOF) mass spectra of lipids from M. ulcerans and M. marinum. These spectra show the presence of diesters of phthiocerol and phthiodiolone, and of phenolic glycolipids in M. marinum, whereas only diesters of phthiodiolone and phenolphthiodiolone occur in M. ulcerans.

This Article

  1. Published in Advance January 8, 2007, doi: 10.1101/gr.5942807 Genome Res. 17: 192-200
