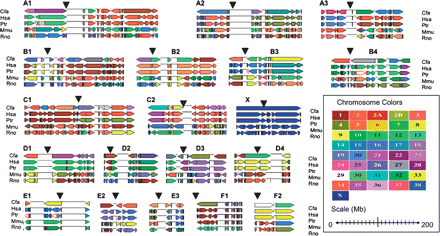

Figure 1.
Homologous synteny blocks (HSBs) of the cat genome as compared to corresponding syntenic blocks in five mammalian species: (Cfa) Canis familiaris, (Hsa) Homo sapiens, (Ptr) Pan troglodytes, (Mmu) Mus musculus, and (Rno) Rattus norvegicus. The empty line between blocks indicates ambiguous regions, which may arise, for example from gaps in the genome assemblies. White regions with red borders represent alignments to unplaced contigs. Black triangle represents approximate centromere position.
