Genome-wide prediction of conserved and nonconserved enhancers by histone acetylation patterns

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 1.
Figure 1.

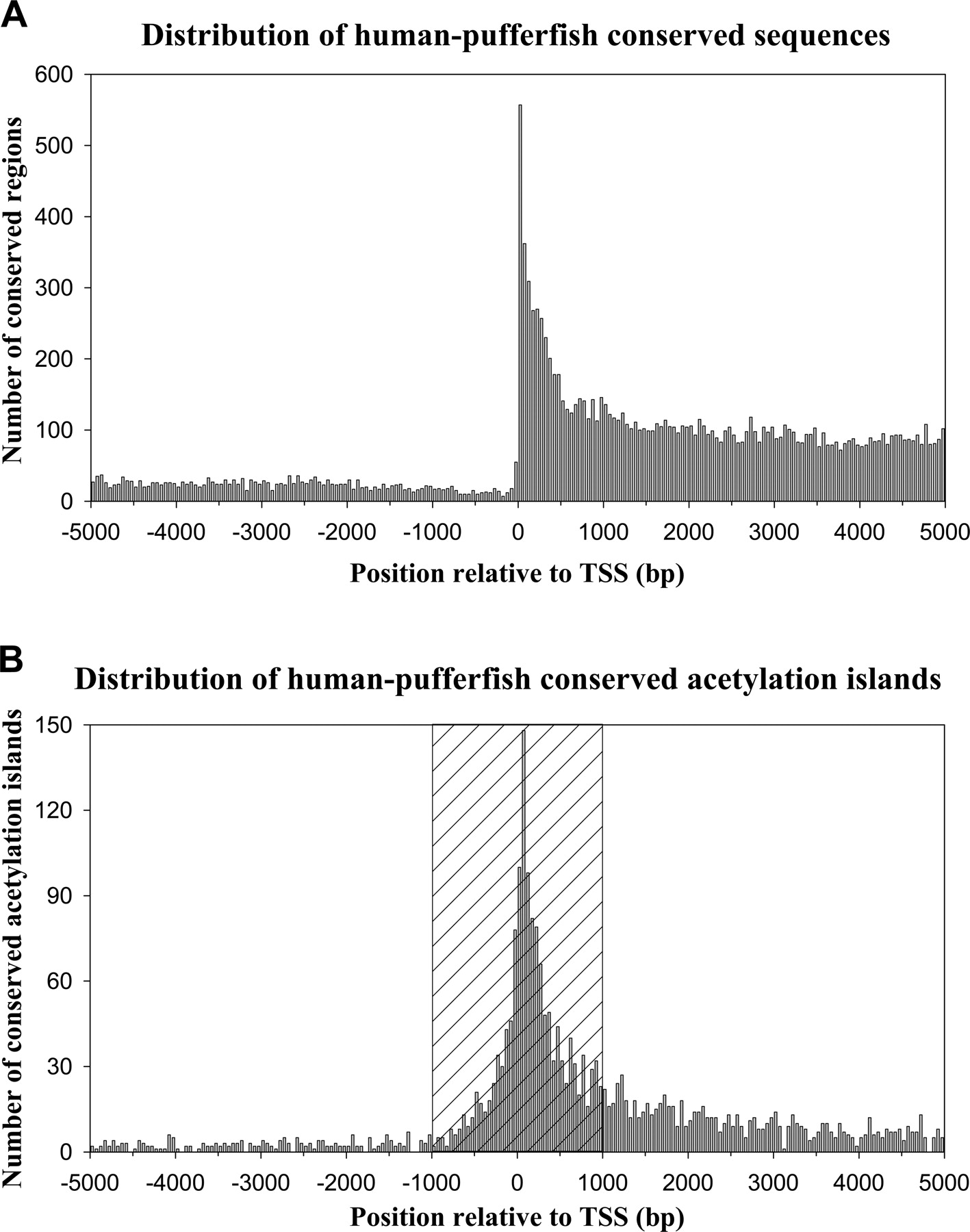

The distribution of sequences that are conserved between human and pufferfish. (A) The distribution of human–pufferfish conserved sequences. A total of 14,068 conserved sequences are plotted relative to their location within 5 kb of the nearest RefSeq transcription start site (TSS) in the human genome. The y-axis indicates the number of sequences (50-bp window sizes) found 5 kb upstream or downstream of a TSS. (B) The distribution of human–pufferfish conserved sequences that are associated with histone acetylation islands. A total of 2459 conserved sequences associated with acetylation islands are plotted as in A. The hatched box indicates sequences found within 1 kb of a TSS.

This Article

  1. Published in Advance November 29, 2006, doi: 10.1101/gr.5767907 Genome Res. 17: 74-81
