Suz12 binds to silenced regions of the genome in a cell-type-specific manner

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

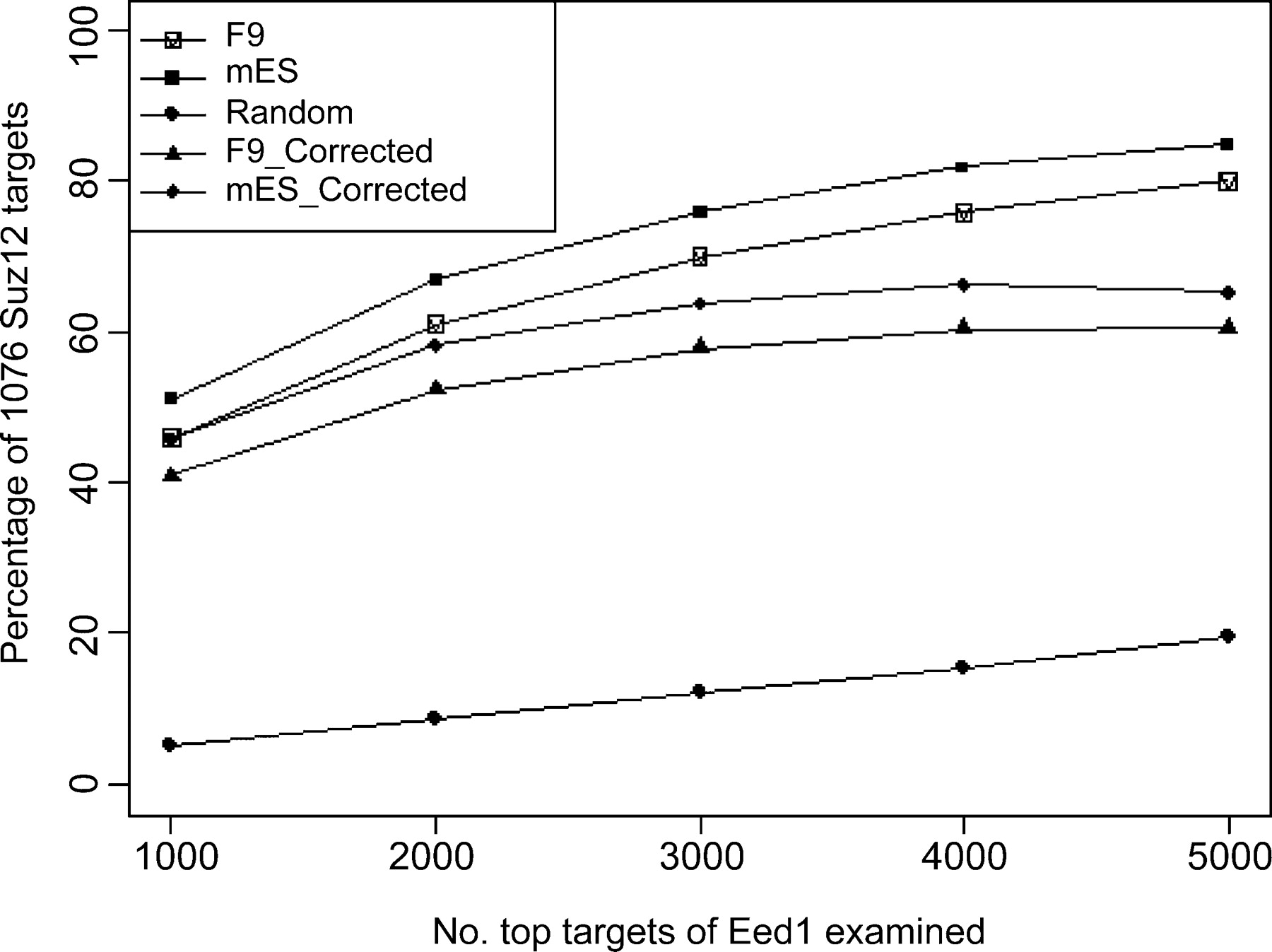

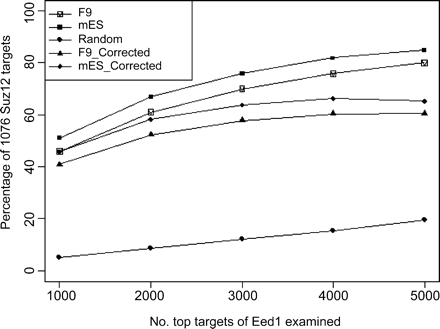

Figure 6.
Figure 6.

Most Suz12 target genes are bound by Eed1. Shown is the percentage of Suz12 targets found in the top 5000 (in bins of 1000) Eed1 target genes in F9 and mES cells (indicated as F9 and mES). Also shown is the “corrected” percentage of Suz12 target genes found in the top 5000 Eed1 target genes for both mouse F9 and mES cells (indicated as F9 Corrected and mES Corrected). The “corrected” percentage was calculated by subtracting the percentage of Suz12 target genes that was found in a randomized set of promoters (indicated as random) from the number found in the ranked set of Eed1 targets for F9 or mES cells.

This Article

  1. Published in Advance June 2, 2006, doi: 10.1101/gr.5306606 Genome Res. 16: 890-900
